🎯 Learning Path:

1. Complete REL-ID Complete Activation & Login Flow Codelab
2. Complete REL-ID Additional Device Activation Flow Codelab
3. Complete REL-ID Forgot Password Flow Codelab
4. You are here → Password Expiry Flow Implementation

Welcome to the REL-ID Password Expiry codelab! This tutorial builds upon your existing MFA implementation to add secure expired password update capabilities using REL-ID SDK's updatePassword API.

What You'll Build

In this codelab, you'll enhance your existing MFA application with:

• 🔐 Password Expiry Detection: getPassword event with challengeMode = 4 (RDNA_OP_UPDATE_CREDENTIALS)
• 📝 Three-Field Password Form: Current password, new password, and confirm password validation
• 📋 Password Policy Display: Extract and display RELID_PASSWORD_POLICY requirements
• 🔄 Password Reuse Detection: Handle statusCode 164 with automatic field clearing
• 🛡️ Security Best Practices: Secure password update with comprehensive validation

What You'll Learn

By completing this codelab, you'll master:

1. Password Expiry Detection: Identifying when password has expired and routing to update flow
2. UpdatePassword API Integration: Implementing updatePassword(current, new, 4) with proper handling
3. Password Policy Extraction: Parsing RELID_PASSWORD_POLICY from challenge data
4. Password Reuse Handling: Detecting and recovering from password reuse errors (statusCode 164)
5. Three-Field Validation: Validating current, new, and confirm passwords with proper error messages
6. Production Security Patterns: Implement secure password expiry with comprehensive error handling

Prerequisites

Before starting this codelab, ensure you have:

• ✅ Completed REL-ID MFA Complete Activation & Login Flow Codelab - All MFA screens and flows must be fully implemented
• ✅ Android Development Environment - Android Studio Hedgehog (2023.1.1) or later
• ✅ REL-ID SDK Integration - Latest SDK with password expiry usecase
• ✅ Kotlin Knowledge - Understanding of Kotlin coroutines, StateFlow, and Jetpack Compose
• ✅ Server Configuration - REL-ID server with password expiry time/policies configured

Get the Code from GitHub

The code to get started can be found in a GitHub repository.

You can clone the repository using the following command:

git clone https://github.com/uniken-public/codelab-android.git

Navigate to the relid-MFA-password-expiry folder in the repository you cloned earlier

Codelab Architecture Overview

This codelab extends your MFA application with three core password expiry components:

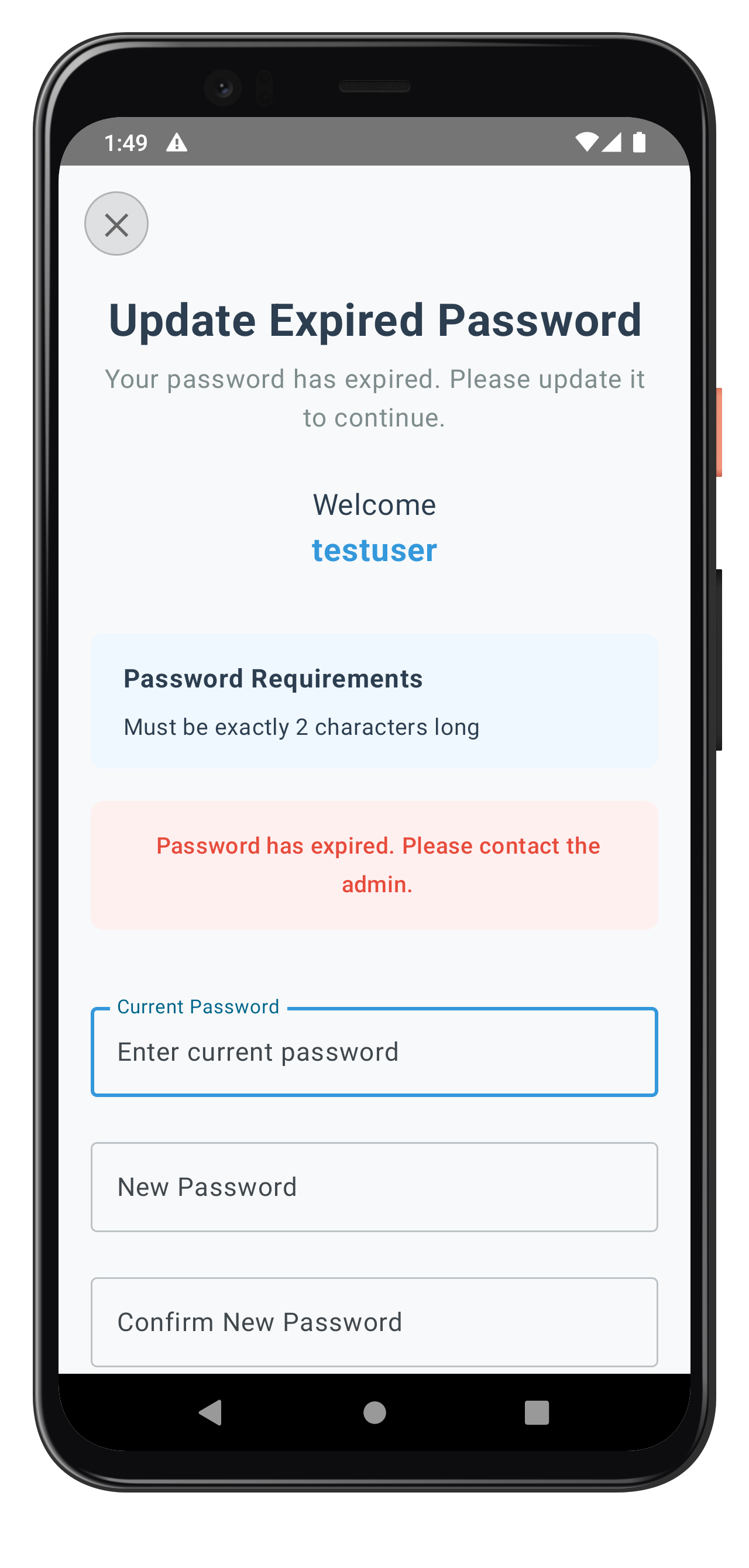

1. UpdateExpiryPasswordScreen: Three-field password form with policy display and validation (Composable)
2. UpdatePassword API Integration: Service layer implementation following established SDK patterns
3. getPassword Event Routing Enhancement: SDKEventProvider routing for challengeMode 4 detection

Before implementing password expiry functionality, let's understand the key SDK events and APIs that power the expired password update workflow.

Password Expiry Event Flow

The password expiry process follows this event-driven pattern:

Login with Expired Password with challengeMode=0(RDNA_CHALLENGE_OP_VERIFY) → Server Detects Expiry (statusCode 118) →
SDK Triggers getPassword Event with challengeMode=4(RDNA_OP_UPDATE_CREDENTIALS) → UpdateExpiryPasswordScreen Displays →
User Updates Password → updatePassword(current, new, 4) API → onUserLoggedIn Event → Dashboard

Password Expiry Trigger Mechanism

When a user's password expires, the login flow changes:

Challenge Mode 4 - RDNA_OP_UPDATE_CREDENTIALS

Challenge Mode 4 is specifically for expired password updates:

Core Password Expiry Event Types

The REL-ID SDK triggers these main events during password expiry flow:

Password Policy Extraction

Password expiry flow uses the same default policy key as password creation:

Password Reuse Detection

The server maintains password history and detects reuse:

UpdatePassword API Pattern

Here's the Kotlin implementation of the updatePassword API:

// app/src/main/java/com/relidcodelab/uniken/services/RDNAService.kt (password expiry addition)

/**
 * Update expired password (Password Expiry Flow)
 *
 * This method is specifically used for updating expired passwords during MFA authentication.
 * When password is expired during login (challengeMode=0), SDK automatically
 * re-triggers getPassword() event with challengeMode=4.
 *
 * @param currentPassword The user's current password
 * @param newPassword The new password to set
 * @param challengeMode Challenge mode (should be 4 for RDNA_OP_UPDATE_CREDENTIALS)
 * @return RDNAError that indicates sync response (longErrorCode == 0 for success)
 */
fun updatePassword(currentPassword: String?, newPassword: String?, challengeMode: Int): RDNAError {
    Log.d(TAG, "updatePassword() called with challengeMode: $challengeMode")

    val mode = when (challengeMode) {
        4 -> RDNAChallengeOpMode.RDNA_OP_UPDATE_CREDENTIALS
        else -> RDNAChallengeOpMode.RDNA_OP_UPDATE_CREDENTIALS
    }

    // IMPORTANT: Pass mode.intValue, not enum!
    val error = rdna.updatePassword(currentPassword, newPassword, mode.intValue)

    if (error.longErrorCode != 0) {
        Log.e(TAG, "updatePassword sync error: ${error.errorString} (code: ${error.longErrorCode})")
    } else {
        Log.d(TAG, "updatePassword sync success, waiting for async events")
    }

    return error
}

Let's implement the updatePassword API in your service layer following established REL-ID SDK patterns.

Enhance RDNAService with UpdatePassword

Add the updatePassword method to your existing service implementation:

// app/src/main/java/com/relidcodelab/uniken/services/RDNAService.kt (addition to existing object)

/**
 * Update expired password (Password Expiry Flow)
 *
 * This method is specifically used for updating expired passwords during MFA authentication.
 * When password is expired during login (challengeMode=0), SDK automatically
 * re-triggers getPassword() event with challengeMode=4 (RDNA_OP_UPDATE_CREDENTIALS).
 * The app should then call this method with both current and new passwords.
 *
 * @see https://developer.uniken.com/docs/password-expiry
 *
 * Workflow:
 * 1. User logs in with expired password (challengeMode=0)
 * 2. Server detects expiry (statusCode=118)
 * 3. SDK triggers getPassword with challengeMode=4
 * 4. App displays UpdateExpiryPasswordScreen
 * 5. User provides current and new passwords
 * 6. App calls updatePassword(current, new, 4)
 * 7. SDK validates and updates password
 * 8. SDK logs user in automatically (onUserLoggedIn event)
 *
 * Response Validation Logic:
 * 1. Check error.longErrorCode: 0 = success, > 0 = error
 * 2. On success, triggers onUserLoggedIn event immediately
 * 3. On failure, may trigger getPassword again with error status
 * 4. StatusCode 164 = Password reuse error (used in last N passwords)
 * 5. Async events will be handled by event listeners
 *
 * @param currentPassword The user's current password
 * @param newPassword The new password to set
 * @param challengeMode Challenge mode (should be 4 for RDNA_OP_UPDATE_CREDENTIALS)
 * @return RDNAError that indicates sync response
 */
fun updatePassword(currentPassword: String?, newPassword: String?, challengeMode: Int): RDNAError {
    Log.d(TAG, "updatePassword() called with challengeMode: $challengeMode")

    val mode = when (challengeMode) {
        4 -> RDNAChallengeOpMode.RDNA_OP_UPDATE_CREDENTIALS
        else -> RDNAChallengeOpMode.RDNA_OP_UPDATE_CREDENTIALS
    }

    // IMPORTANT: Pass mode.intValue, not enum directly
    val error = rdna.updatePassword(currentPassword, newPassword, mode.intValue)

    if (error.longErrorCode != 0) {
        Log.e(TAG, "updatePassword sync error: ${error.errorString} (code: ${error.longErrorCode})")
    } else {
        Log.d(TAG, "updatePassword sync success, waiting for onUserLoggedIn event")
    }

    return error
}

Service Pattern Consistency

Notice how this implementation follows the exact pattern established by other service methods:

Now let's enhance your SDKEventProvider to detect and route challengeMode 4 to the UpdateExpiryPasswordScreen.

Add Challenge Mode 4 Detection

Update your existing handleGetPasswordEvents function in SDKEventProvider:

// app/src/main/java/com/relidcodelab/uniken/providers/SDKEventProvider.kt (enhancement)

private suspend fun handleGetPasswordEvents(
    rdnaService: RDNAService,
    callbackManager: RDNACallbackManager,
    navController: NavController
) {
    callbackManager.getPasswordEvent.collect { eventData ->
        Log.d(TAG, "getPassword event received:")
        Log.d(TAG, "  - userId: ${eventData.userId}")
        Log.d(TAG, "  - mode: ${eventData.mode?.intValue}")  // 0, 1, 2, or 4

        val challengeMode = eventData.mode?.intValue ?: 1

        when (challengeMode) {
            0 -> {
                // challengeMode = 0: Verify existing password
                Log.d(TAG, "getPassword (VERIFY mode) - navigating to VerifyPasswordScreen")

                verifyPasswordViewModel = VerifyPasswordViewModel(
                    rdnaService = rdnaService,
                    callbackManager = callbackManager,
                    initialEventData = eventData
                )

                navController.navigate(Routes.VERIFY_PASSWORD) {
                    popUpTo(Routes.CHECK_USER) { inclusive = false }
                }
            }
            4 -> {
                // challengeMode = 4: Update expired password (RDNA_OP_UPDATE_CREDENTIALS)
                Log.d(TAG, "getPassword (UPDATE_CREDENTIALS mode=4) - navigating to UpdateExpiryPasswordScreen")

                updateExpiryPasswordViewModel = UpdateExpiryPasswordViewModel(
                    rdnaService = rdnaService,
                    callbackManager = callbackManager,
                    initialEventData = eventData
                )

                navController.navigate(Routes.UPDATE_EXPIRY_PASSWORD) {
                    popUpTo(Routes.CHECK_USER) { inclusive = false }
                }
            }
            else -> {
                // challengeMode = 1: Set new password
                Log.d(TAG, "getPassword (SET mode) - navigating to SetPasswordScreen")

                setPasswordViewModel = SetPasswordViewModel(
                    rdnaService = rdnaService,
                    callbackManager = callbackManager,
                    initialEventData = eventData
                )

                navController.navigate(Routes.SET_PASSWORD) {
                    popUpTo(Routes.CHECK_USER) { inclusive = false }
                }
            }
        }
    }
}

Challenge Mode Routing Logic

The enhanced routing logic handles three password scenarios:

Add ViewModel Accessor Method

Add a method to retrieve the UpdateExpiryPasswordViewModel:

// app/src/main/java/com/relidcodelab/uniken/providers/SDKEventProvider.kt (addition)

object SDKEventProvider {
    // Shared ViewModels
    private var updateExpiryPasswordViewModel: UpdateExpiryPasswordViewModel? = null
    private var verifyPasswordViewModel: VerifyPasswordViewModel? = null
    private var setPasswordViewModel: SetPasswordViewModel? = null

    // Accessor methods for Navigation composables
    fun getUpdateExpiryPasswordViewModel(): UpdateExpiryPasswordViewModel? = updateExpiryPasswordViewModel
    fun getVerifyPasswordViewModel(): VerifyPasswordViewModel? = verifyPasswordViewModel
    fun getSetPasswordViewModel(): SetPasswordViewModel? = setPasswordViewModel
}

Now let's create the ViewModel that manages state and business logic for the password expiry screen.

Create the ViewModel Class

Create a new ViewModel file:

// app/src/main/java/com/relidcodelab/tutorial/viewmodels/UpdateExpiryPasswordViewModel.kt

package com.relidcodelab.tutorial.viewmodels

import android.util.Log
import androidx.lifecycle.ViewModel
import androidx.lifecycle.viewModelScope
import com.relidcodelab.uniken.services.RDNACallbackManager
import com.relidcodelab.uniken.services.RDNAService
import com.relidcodelab.uniken.services.GetPasswordEventData
import com.relidcodelab.uniken.utils.RDNAEventUtils
import com.relidcodelab.uniken.utils.PasswordPolicyUtils
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.StateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.flow.update
import kotlinx.coroutines.launch

data class UpdateExpiryPasswordUiState(
    val currentPassword: String = "",
    val newPassword: String = "",
    val confirmPassword: String = "",
    val error: String = "",
    val isSubmitting: Boolean = false,
    val challengeMode: Int = 4,
    val userName: String = "",
    val passwordPolicyMessage: String = ""
)

class UpdateExpiryPasswordViewModel(
    private val rdnaService: RDNAService,
    private val callbackManager: RDNACallbackManager,
    private val initialEventData: GetPasswordEventData?
) : ViewModel() {

    companion object {
        private const val TAG = "UpdateExpiryPasswordVM"
    }

    private val _uiState = MutableStateFlow(UpdateExpiryPasswordUiState())
    val uiState: StateFlow<UpdateExpiryPasswordUiState> = _uiState.asStateFlow()

    init {
        Log.d(TAG, "ViewModel created")
        processInitialEventData()
        observeGetPasswordEvents()
    }

    /**
     * Process initial event data from route params
     */
    private fun processInitialEventData() {
        initialEventData?.let { data ->
            Log.d(TAG, "Processing initial event data for password expiry")

            // 1. Extract username
            val userID = data.userId ?: ""

            // 2. Extract challenge mode (should be 4)
            val mode = data.mode?.intValue ?: 4

            // 3. Extract password policy FIRST (even if error present)
            val policyJsonString = RDNAEventUtils.getChallengeValue(
                data.response,
                "RELID_PASSWORD_POLICY"  // KEY: Always extract this
            )

            val policyMessage = if (policyJsonString != null) {
                val message = PasswordPolicyUtils.parseAndGeneratePolicyMessage(policyJsonString)
                Log.d(TAG, "Parsed policy message: $message")
                message
            } else {
                Log.w(TAG, "No password policy found in challenge info")
                ""
            }

            // 4. Check for errors AFTER policy extraction
            val errorMessage = when {
                RDNAEventUtils.hasApiError(data.error) -> {
                    val msg = RDNAEventUtils.getErrorMessage(data.error)
                    Log.e(TAG, "Initial event has API error: $msg")
                    msg
                }
                RDNAEventUtils.hasStatusError(data.response) -> {
                    val msg = RDNAEventUtils.getErrorMessage(data.error, data.response)
                    Log.e(TAG, "Initial event has status error: $msg")
                    msg
                }
                else -> ""
            }

            // 5. Update UI state with BOTH policy and error
            _uiState.update {
                it.copy(
                    userName = userID,
                    challengeMode = mode,
                    passwordPolicyMessage = policyMessage,  // Show policy requirements
                    error = errorMessage,  // Show any errors
                    currentPassword = "",  // Clear fields on error
                    newPassword = "",
                    confirmPassword = ""
                )
            }
        }
    }

    /**
     * Observe ongoing getPassword events (for password reuse errors)
     */
    private fun observeGetPasswordEvents() {
        viewModelScope.launch {
            callbackManager.getPasswordEvent.collect { eventData ->
                val mode = eventData.mode?.intValue ?: 0

                // Only process events for this challengeMode (4)
                if (mode == 4) {
                    Log.d(TAG, "Received getPassword event with mode 4")

                    // Extract password policy again (always present)
                    val policyJsonString = RDNAEventUtils.getChallengeValue(
                        eventData.response,
                        "RELID_PASSWORD_POLICY"
                    )

                    val policyMessage = if (policyJsonString != null) {
                        PasswordPolicyUtils.parseAndGeneratePolicyMessage(policyJsonString)
                    } else {
                        ""
                    }

                    // Check for status errors (e.g., password reuse - statusCode 164)
                    if (RDNAEventUtils.hasStatusError(eventData.response)) {
                        val errorMessage = RDNAEventUtils.getErrorMessage(eventData.error, eventData.response)
                        Log.e(TAG, "Status error detected: $errorMessage")

                        _uiState.update {
                            it.copy(
                                error = errorMessage,
                                isSubmitting = false,
                                currentPassword = "",  // Clear all fields on error
                                newPassword = "",
                                confirmPassword = "",
                                passwordPolicyMessage = policyMessage  // Keep policy visible
                            )
                        }
                    }
                }
            }
        }
    }

    // Input change handlers
    fun updateCurrentPassword(value: String) {
        _uiState.update { it.copy(currentPassword = value, error = "") }
    }

    fun updateNewPassword(value: String) {
        _uiState.update { it.copy(newPassword = value, error = "") }
    }

    fun updateConfirmPassword(value: String) {
        _uiState.update { it.copy(confirmPassword = value, error = "") }
    }

    /**
     * Check if form is valid for submission
     */
    fun isFormValid(): Boolean {
        val state = _uiState.value
        return state.currentPassword.trim().isNotEmpty() &&
               state.newPassword.trim().isNotEmpty() &&
               state.confirmPassword.trim().isNotEmpty() &&
               state.error.isEmpty()
    }

    /**
     * Handle password update submission
     */
    fun handleUpdatePassword() {
        val currentState = _uiState.value

        if (currentState.isSubmitting) {
            Log.w(TAG, "Already submitting, ignoring duplicate call")
            return
        }

        val trimmedCurrentPassword = currentState.currentPassword.trim()
        val trimmedNewPassword = currentState.newPassword.trim()
        val trimmedConfirmPassword = currentState.confirmPassword.trim()

        // Validation Step 1: Non-empty fields
        if (trimmedCurrentPassword.isEmpty()) {
            _uiState.update { it.copy(error = "Please enter your current password") }
            return
        }

        if (trimmedNewPassword.isEmpty()) {
            _uiState.update { it.copy(error = "Please enter a new password") }
            return
        }

        if (trimmedConfirmPassword.isEmpty()) {
            _uiState.update { it.copy(error = "Please confirm your new password") }
            return
        }

        // Validation Step 2: Passwords match
        if (trimmedNewPassword != trimmedConfirmPassword) {
            _uiState.update {
                it.copy(
                    error = "New password and confirm password do not match",
                    newPassword = "",  // Clear fields
                    confirmPassword = ""
                )
            }
            return
        }

        // Validation Step 3: New password differs from current
        if (trimmedCurrentPassword == trimmedNewPassword) {
            _uiState.update {
                it.copy(
                    error = "New password must be different from current password",
                    newPassword = "",
                    confirmPassword = ""
                )
            }
            return
        }

        // All validations passed
        _uiState.update { it.copy(isSubmitting = true, error = "") }

        viewModelScope.launch {
            Log.d(TAG, "Calling updatePassword with challengeMode: ${currentState.challengeMode}")

            // CRITICAL: Call updatePassword with mode 4
            val error = rdnaService.updatePassword(
                trimmedCurrentPassword,
                trimmedNewPassword,
                currentState.challengeMode  // Should be 4
            )

            Log.d(TAG, "UpdatePassword sync response - Error code: ${error.longErrorCode}")

            if (error.longErrorCode == 0) {
                // Sync success - wait for async events
                Log.d(TAG, "UpdatePassword sync success, waiting for onUserLoggedIn event")
                // SDK will trigger onUserLoggedIn event automatically
                // SDKEventProvider will handle navigation to Dashboard
            } else {
                // Sync error
                val errorMessage = error.errorString ?: "Failed to update password"
                _uiState.update {
                    it.copy(
                        error = errorMessage,
                        isSubmitting = false,
                        currentPassword = "",  // Clear all fields on error
                        newPassword = "",
                        confirmPassword = ""
                    )
                }
                Log.e(TAG, "UpdatePassword sync error: $errorMessage")
            }
        }
    }

    /**
     * Handle close button - reset auth state
     */
    fun handleClose() {
        viewModelScope.launch {
            try {
                Log.d(TAG, "Calling resetAuthState")
                val error = rdnaService.resetAuthState()
                if (error.longErrorCode != 0) {
                    Log.e(TAG, "ResetAuthState error: ${error.errorString}")
                } else {
                    Log.d(TAG, "ResetAuthState successful")
                }
            } catch (e: Exception) {
                Log.e(TAG, "ResetAuthState exception", e)
            }
        }
    }

    override fun onCleared() {
        super.onCleared()
        Log.d(TAG, "ViewModel cleared")
    }
}

Key ViewModel Features

Now let's build the complete Composable UI with three password fields, policy display, and keyboard management.

Create the Screen Composable

Create a new file for the password expiry screen:

// app/src/main/java/com/relidcodelab/tutorial/screens/mfa/UpdateExpiryPasswordScreen.kt

package com.relidcodelab.tutorial.screens.mfa

import androidx.activity.compose.BackHandler
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.*
import androidx.compose.foundation.rememberScrollState
import androidx.compose.foundation.shape.RoundedCornerShape
import androidx.compose.foundation.text.KeyboardActions
import androidx.compose.foundation.text.KeyboardOptions
import androidx.compose.foundation.verticalScroll
import androidx.compose.material3.*
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.remember
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.clip
import androidx.compose.ui.focus.FocusRequester
import androidx.compose.ui.focus.focusRequester
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.platform.LocalFocusManager
import androidx.compose.ui.text.font.FontWeight
import androidx.compose.ui.text.input.ImeAction
import androidx.compose.ui.text.input.KeyboardType
import androidx.compose.ui.text.input.PasswordVisualTransformation
import androidx.compose.ui.text.style.TextAlign
import androidx.compose.ui.unit.dp
import androidx.compose.ui.unit.sp
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import com.relidcodelab.tutorial.components.CloseButton
import com.relidcodelab.tutorial.components.StatusBanner
import com.relidcodelab.tutorial.components.StatusBannerType
import com.relidcodelab.tutorial.viewmodels.UpdateExpiryPasswordViewModel
import com.relidcodelab.ui.theme.*

@Composable
fun UpdateExpiryPasswordScreen(
    viewModel: UpdateExpiryPasswordViewModel,
    onClose: () -> Unit,
    title: String = "Update Expired Password",
    subtitle: String = "Your password has expired. Please update it to continue."
) {
    val uiState by viewModel.uiState.collectAsStateWithLifecycle()
    val focusManager = LocalFocusManager.current
    val newPasswordFocusRequester = remember { FocusRequester() }
    val confirmPasswordFocusRequester = remember { FocusRequester() }

    // Disable back button during password expiry
    BackHandler(enabled = true) {
        // Do nothing - prevent back navigation
    }

    Box(modifier = Modifier.fillMaxSize()) {
        Scaffold(containerColor = PageBackground) { padding ->
            Column(
                modifier = Modifier
                    .fillMaxSize()
                    .padding(padding)
                    .imePadding()
                    .verticalScroll(rememberScrollState())
                    .padding(horizontal = 20.dp)
                    .padding(top = 80.dp, bottom = 20.dp),
                horizontalAlignment = Alignment.CenterHorizontally
            ) {
                // Title
                Text(
                    text = title,
                    fontSize = 28.sp,
                    fontWeight = FontWeight.Bold,
                    color = TextPrimary,
                    textAlign = TextAlign.Center,
                    modifier = Modifier.padding(bottom = 8.dp)
                )

                // Subtitle
                Text(
                    text = subtitle,
                    fontSize = 16.sp,
                    color = TextSecondary,
                    textAlign = TextAlign.Center,
                    modifier = Modifier.padding(bottom = 30.dp)
                )

                // User welcome (conditional)
                if (uiState.userName.isNotEmpty()) {
                    Column(
                        horizontalAlignment = Alignment.CenterHorizontally,
                        modifier = Modifier.padding(bottom = 20.dp)
                    ) {
                        Text(
                            text = "Welcome",
                            fontSize = 18.sp,
                            color = TextPrimary
                        )
                        Text(
                            text = uiState.userName,
                            fontSize = 20.sp,
                            fontWeight = FontWeight.Bold,
                            color = PrimaryBlue,
                            modifier = Modifier.padding(top = 4.dp)
                        )
                    }
                }

                // Password policy container (with left border)
                if (uiState.passwordPolicyMessage.isNotEmpty()) {
                    Row(
                        modifier = Modifier
                            .fillMaxWidth()
                            .padding(bottom = 20.dp)
                            .clip(RoundedCornerShape(8.dp))
                            .background(PolicyBackground)
                    ) {
                        // Left border
                        Box(
                            modifier = Modifier
                                .width(4.dp)
                                .fillMaxHeight()
                                .background(PolicyBorder)
                        )

                        // Content area
                        Column(modifier = Modifier.padding(16.dp)) {
                            Text(
                                text = "Password Requirements",
                                fontSize = 16.sp,
                                fontWeight = FontWeight.Bold,
                                color = TextPrimary,
                                modifier = Modifier.padding(bottom = 8.dp)
                            )
                            Text(
                                text = uiState.passwordPolicyMessage,
                                fontSize = 14.sp,
                                color = TextPrimary,
                                lineHeight = 20.sp
                            )
                        }
                    }
                }

                // Error banner (conditional)
                if (uiState.error.isNotEmpty()) {
                    StatusBanner(
                        type = StatusBannerType.ERROR,
                        message = uiState.error,
                        modifier = Modifier.padding(bottom = 20.dp)
                    )
                }

                // Current Password Input
                OutlinedTextField(
                    value = uiState.currentPassword,
                    onValueChange = { viewModel.updateCurrentPassword(it) },
                    label = { Text("Current Password") },
                    placeholder = { Text("Enter current password") },
                    visualTransformation = PasswordVisualTransformation(),
                    keyboardOptions = KeyboardOptions(
                        keyboardType = KeyboardType.Password,
                        imeAction = ImeAction.Next
                    ),
                    keyboardActions = KeyboardActions(
                        onNext = { newPasswordFocusRequester.requestFocus() }
                    ),
                    enabled = !uiState.isSubmitting,
                    singleLine = true,
                    colors = OutlinedTextFieldDefaults.colors(
                        focusedBorderColor = PrimaryBlue,
                        unfocusedBorderColor = BorderColor
                    ),
                    modifier = Modifier
                        .fillMaxWidth()
                        .padding(bottom = 20.dp)
                )

                // New Password Input
                OutlinedTextField(
                    value = uiState.newPassword,
                    onValueChange = { viewModel.updateNewPassword(it) },
                    label = { Text("New Password") },
                    placeholder = { Text("Enter new password") },
                    visualTransformation = PasswordVisualTransformation(),
                    keyboardOptions = KeyboardOptions(
                        keyboardType = KeyboardType.Password,
                        imeAction = ImeAction.Next
                    ),
                    keyboardActions = KeyboardActions(
                        onNext = { confirmPasswordFocusRequester.requestFocus() }
                    ),
                    enabled = !uiState.isSubmitting,
                    singleLine = true,
                    colors = OutlinedTextFieldDefaults.colors(
                        focusedBorderColor = PrimaryBlue,
                        unfocusedBorderColor = BorderColor
                    ),
                    modifier = Modifier
                        .fillMaxWidth()
                        .padding(bottom = 20.dp)
                        .focusRequester(newPasswordFocusRequester)
                )

                // Confirm New Password Input
                OutlinedTextField(
                    value = uiState.confirmPassword,
                    onValueChange = { viewModel.updateConfirmPassword(it) },
                    label = { Text("Confirm New Password") },
                    placeholder = { Text("Confirm new password") },
                    visualTransformation = PasswordVisualTransformation(),
                    keyboardOptions = KeyboardOptions(
                        keyboardType = KeyboardType.Password,
                        imeAction = ImeAction.Done
                    ),
                    keyboardActions = KeyboardActions(
                        onDone = {
                            focusManager.clearFocus()
                            if (viewModel.isFormValid()) {
                                viewModel.handleUpdatePassword()
                            }
                        }
                    ),
                    enabled = !uiState.isSubmitting,
                    singleLine = true,
                    colors = OutlinedTextFieldDefaults.colors(
                        focusedBorderColor = PrimaryBlue,
                        unfocusedBorderColor = BorderColor
                    ),
                    modifier = Modifier
                        .fillMaxWidth()
                        .padding(bottom = 20.dp)
                        .focusRequester(confirmPasswordFocusRequester)
                )

                // Submit Button with Loading State
                Button(
                    onClick = { viewModel.handleUpdatePassword() },
                    enabled = viewModel.isFormValid() && !uiState.isSubmitting,
                    colors = ButtonDefaults.buttonColors(
                        containerColor = PrimaryBlue,
                        disabledContainerColor = Color.Gray
                    ),
                    modifier = Modifier
                        .fillMaxWidth()
                        .height(50.dp)
                ) {
                    if (uiState.isSubmitting) {
                        CircularProgressIndicator(
                            modifier = Modifier.size(24.dp),
                            color = Color.White,
                            strokeWidth = 2.dp
                        )
                        Spacer(modifier = Modifier.width(8.dp))
                        Text("Updating Password...", fontSize = 16.sp)
                    } else {
                        Text("Update Password", fontSize = 16.sp)
                    }
                }

                // Help container
                Row(
                    modifier = Modifier
                        .fillMaxWidth()
                        .padding(top = 20.dp)
                        .clip(RoundedCornerShape(8.dp))
                        .background(InfoBackground)
                        .padding(16.dp)
                ) {
                    Text(
                        text = "Update your password. Your new password must be different from your current password.",
                        fontSize = 14.sp,
                        color = TextPrimary,
                        textAlign = TextAlign.Center
                    )
                }
            }
        }

        // Close Button (absolute positioned)
        CloseButton(
            onPress = {
                viewModel.handleClose()
                onClose()
            },
            enabled = !uiState.isSubmitting
        )
    }
}

UI Component Breakdown

Keyboard Management Explanation

Jetpack Compose provides built-in keyboard management:

The KeyboardActions configuration creates a seamless user experience where pressing the keyboard's "Next" button automatically advances to the next field, and "Done" on the final field submits the form.

The following images showcase screens from the sample application:

Let's register the UpdateExpiryPasswordScreen in your navigation configuration.

Update Routes Object

Add the route constant:

// app/src/main/java/com/relidcodelab/tutorial/navigation/AppNavigation.kt (route addition)

object Routes {
    // Tutorial Screens
    const val TUTORIAL_HOME = "TutorialHome"
    const val TUTORIAL_SUCCESS = "TutorialSuccess"

    // MFA Flow Screens (Event-driven)
    const val CHECK_USER = "CheckUser"
    const val ACTIVATION_CODE = "ActivationCode"
    const val SET_PASSWORD = "SetPassword"
    const val VERIFY_PASSWORD = "VerifyPassword"
    const val UPDATE_EXPIRY_PASSWORD = "UpdateExpiryPassword"  // NEW for Password Expiry
    const val USER_LDA_CONSENT = "UserLDAConsent"
    const val DASHBOARD = "Dashboard"
}

Register the Screen in NavHost

Add the screen to your navigation stack:

// app/src/main/java/com/relidcodelab/tutorial/navigation/AppNavigation.kt (screen registration)

@Composable
fun AppNavigation(
    currentActivity: Activity?,
    rdnaService: RDNAService,
    callbackManager: RDNACallbackManager,
    navController: NavHostController = rememberNavController()
): NavHostController {

    NavHost(
        navController = navController,
        startDestination = Routes.TUTORIAL_HOME
    ) {
        composable(Routes.TUTORIAL_HOME) { /* ... */ }

        // ... other screens ...

        // NEW: UpdateExpiryPasswordScreen - Update expired password (challengeMode=4)
        composable(Routes.UPDATE_EXPIRY_PASSWORD) {
            val viewModel = SDKEventProvider.getUpdateExpiryPasswordViewModel()
            if (viewModel != null) {
                UpdateExpiryPasswordScreen(
                    viewModel = viewModel,
                    onClose = {
                        navController.popBackStack()
                    }
                )
            } else {
                // Fallback UI while ViewModel is being created
                Box(
                    modifier = Modifier.fillMaxSize(),
                    contentAlignment = Alignment.Center
                ) {
                    CircularProgressIndicator()
                }
            }
        }

        // ... other screens ...
    }

    return navController
}

Navigation Flow Verification

Verify your navigation flow is complete:

Now let's test the complete password expiry implementation with various scenarios.

Test Scenario 1: Standard Password Expiry Flow

Follow these steps to test standard password expiry:

1. Login with expired password
   • Use VerifyPasswordScreen (challengeMode = 0)
   • Enter credentials for user with expired password
2. Verify automatic navigation
   • SDK should detect expiry (statusCode 118)
   • SDK triggers getPassword with challengeMode = 4
   • App navigates to UpdateExpiryPasswordScreen
3. Check password policy display
   • Verify "Password Requirements" section appears
   • Confirm policy is extracted from RELID_PASSWORD_POLICY
   • Check policy message is user-friendly
4. Update password
   • Enter current password
   • Enter new password (meeting policy requirements)
   • Enter confirm password (matching new password)
   • Tap "Update Password"
5. Verify automatic login
   • SDK should trigger onUserLoggedIn event
   • App should navigate to Dashboard automatically

Test Scenario 2: Password Reuse Detection

Test password reuse error handling:

1. Navigate to UpdateExpiryPasswordScreen (following Scenario 1 steps 1-3)
2. Enter recently used password
   • Current password: [user's current password]
   • New password: [password used in last N passwords]
   • Confirm password: [same as new password]
   • Tap "Update Password"
3. Verify reuse detection
   • SDK returns statusCode 164
   • SDK re-triggers getPassword with challengeMode = 4
   • Error message displayed: "Please enter a new password as your entered password has been used by you previously..."
4. Verify automatic field clearing
   • All three password fields should clear automatically
   • User can retry with different password
   • Error message remains visible
5. Retry with valid password
   • Enter current password again
   • Enter new password (not in history)
   • Enter confirm password
   • Verify successful update and login

Test Scenario 3: Validation Errors

Test all validation rules:

Test Scenario 4: Password Policy Violations

Test password policy enforcement:

1. Navigate to UpdateExpiryPasswordScreen
2. Check displayed policy requirements
   • Note minimum length, character requirements
   • Note any special restrictions
3. Enter policy-violating password
   • Example: Too short, missing uppercase, etc.
   • Tap "Update Password"
4. Verify server-side validation
   • Server should return policy violation error
   • SDK re-triggers getPassword with error
   • Fields should clear automatically
   • Error message should display policy violation

Debugging with Logcat

Use Android Logcat for debugging:

# View logs for password expiry
adb logcat | grep -E "(UpdateExpiryPasswordVM|SDKEventProvider|RDNAService)"

# View all RDNA-related logs
adb logcat | grep RDNA

# View specific log level
adb logcat *:E  # Errors only

Debugging Tips

If you encounter issues, check these areas:

Before deploying password expiry functionality to production, review these important considerations.

Security Best Practices

User Experience Optimization

Enhance user experience with these patterns:

// 1. Clear, specific error messages
if (trimmedNewPassword == trimmedCurrentPassword) {
    _uiState.update {
        it.copy(
            error = "New password must be different from current password",
            newPassword = "",
            confirmPassword = ""
        )
    }
}

// 2. Automatic field clearing on errors
if (RDNAEventUtils.hasStatusError(eventData.response)) {
    _uiState.update {
        it.copy(
            error = errorMessage,
            currentPassword = "",
            newPassword = "",
            confirmPassword = ""
        )
    }
}

// 3. Keyboard navigation with FocusRequester
val newPasswordFocusRequester = remember { FocusRequester() }
OutlinedTextField(
    keyboardActions = KeyboardActions(
        onNext = { newPasswordFocusRequester.requestFocus() }
    ),
    // ...
)

// 4. IME padding for keyboard management
Column(
    modifier = Modifier
        .imePadding()  // Automatic keyboard handling
        .verticalScroll(rememberScrollState())
)

Performance Considerations

Testing Checklist

Before production deployment, verify:

• [ ] Password expiry detection works (challengeMode 4 routing)
• [ ] Password policy extracted from RELID_PASSWORD_POLICY
• [ ] Password reuse detection (statusCode 164) with field clearing
• [ ] All validation rules working (empty fields, mismatch, same password)
• [ ] Keyboard navigation between fields
• [ ] IME padding works correctly for keyboard
• [ ] Input fields remain visible when keyboard appears
• [ ] Loading states during API calls
• [ ] Error messages clear and actionable
• [ ] Automatic login after successful update
• [ ] Close button resets auth state properly
• [ ] No passwords logged to console or Logcat
• [ ] ProGuard rules configured for release builds
• [ ] UI matches design system and theme colors

What You've Accomplished

Congratulations! You've successfully implemented REL-ID Password Expiry functionality in your Android application.

You now have:

✅ Password Expiry Detection: Automatic detection and routing of challengeMode 4

✅ UpdatePassword API: Full integration with proper error handling

✅ Three-Field Validation: Current, new, and confirm password validation with Jetpack Compose

✅ Password Policy Display: Extraction and display of RELID_PASSWORD_POLICY

✅ Password Reuse Handling: StatusCode 164 detection with automatic field clearing

✅ Production-Ready: Secure, user-friendly password expiry flow with modern Android architecture

Additional Resources

• REL-ID Password Expiry Documentation - Complete API reference
• REL-ID Challenge Modes - Understanding challenge modes
• Jetpack Compose Documentation - Android modern UI toolkit
• Kotlin Coroutines Guide - Asynchronous programming in Kotlin

Thank you for completing the REL-ID Password Expiry Flow Codelab!

You're now equipped to build secure, production-ready password expiry workflows that provide excellent user experience while maintaining strong security standards using Kotlin, Jetpack Compose, and modern Android architecture patterns.
