12. REL-ID LDA Toggling - Android Codelab

🎯 Learning Path:

Complete REL-ID Complete Activation & Login Flow Codelab
Complete REL-ID Additional Device Activation Flow Codelab
Complete REL-ID Forgot Password Flow Codelab
You are here → LDA Toggling Implementation

Welcome to the REL-ID LDA Toggling codelab! This tutorial builds upon your existing MFA implementation to add seamless authentication mode switching capabilities, allowing users to toggle between password and Local Device Authentication (LDA).

What You'll Build

In this codelab, you'll enhance your existing MFA application with:

🔐 LDA Management Screen: Interactive list of available authentication methods with toggle switches
🔄 Two-Way Authentication Switching: Enable switching from Password to LDA and LDA to Password
📱 Device Capability Detection: Automatic detection and display of supported authentication types
🎛️ Real-time Status Updates: Live feedback on authentication mode changes
🛡️ Secure Revalidation Flow: Password verification or consent prompts during mode switching

What You'll Learn

By completing this codelab, you'll master:

Device Authentication Details API: Retrieving supported LDA types using getDeviceAuthenticationDetails()
Authentication Mode Management: Implementing manageDeviceAuthenticationModes() for toggling
Event-Driven Status Updates: Handling onDeviceAuthManagementStatus for real-time feedback
Challenge Mode Routing: Managing password verification and consent flows during toggling
Type-Safe Implementation: Building robust Kotlin data classes for LDA data structures
Production UI Patterns: Creating intuitive toggle interfaces with Jetpack Compose

Prerequisites

Before starting this codelab, ensure you have:

✅ Completed REL-ID MFA Codelab - All MFA screens and flows must be fully implemented
✅ Android Development Environment - Android Studio Hedgehog (2023.1.1) or later
✅ REL-ID SDK Integration - Latest Android SDK (AAR) with LDA toggling support
✅ Kotlin Knowledge - Understanding of Kotlin data classes and coroutines
✅ Device with Biometrics - Physical device or emulator with biometric authentication enrolled

Get the Code from GitHub

The code to get started can be found in a GitHub repository.

You can clone the repository using the following command:

git clone https://github.com/uniken-public/codelab-android.git

Navigate to the relid-MFA-lda-toggling folder in the repository you cloned earlier

Codelab Architecture Overview

This codelab extends your MFA application with four core LDA toggling components:

LDA Data Models: Kotlin data classes for authentication capabilities and status events
Service Layer Integration: API methods for retrieving and managing authentication modes
Event Management: Event handlers for onDeviceAuthManagementStatus callback
LDA Toggling Screen: Interactive Jetpack Compose UI for displaying and toggling authentication methods

Before implementing LDA toggling functionality, let's understand the key SDK events, APIs, and workflows that power authentication mode switching.

LDA Toggling Overview

LDA Toggling enables users to seamlessly switch between authentication methods:

Toggling Type	Description	User Action
Password → LDA	Switch from password to LDA	User enables LDA such as biometric authentication
LDA → Password	Switch from LDA to password	User disables LDA

Core LDA Toggling APIs

The REL-ID Android SDK provides these essential APIs for LDA management:

API Method	Purpose	Response Type
`getDeviceAuthenticationDetails()`	Retrieve available LDA types and their configuration status	Sync response with authentication capabilities
`manageDeviceAuthenticationModes()`	Enable or disable specific LDA type	Sync response + async event
`onDeviceAuthManagementStatus`	Receive status update after mode change	Async event callback

LDA Toggling Event Flow

The authentication mode switching process follows this event-driven pattern:

LDA Toggling Screen → getDeviceAuthenticationDetails() API → Display Available LDA Types →
User Toggles Switch → manageDeviceAuthenticationModes() API →
[getPassword or getUserConsentForLDA Event] →
onDeviceAuthManagementStatus Event → UI Update with Status

Authentication Type Mappings

The SDK uses enum values for different authentication types:

Authentication Type	Enum Value	Platform	Description
`RDNA_LDA_FINGERPRINT`	1	Android	Fingerprint
`RDNA_LDA_FACE`	2	Android	Face Recognition
`RDNA_LDA_PATTERN`	3	Android	Pattern Authentication
`RDNA_LDA_SSKB_PASSWORD`	4	Android	Biometric Authentication
`RDNA_DEVICE_LDA`	9	Android	Biometric Authentication

Challenge Modes in LDA Toggling

During LDA toggling, the SDK may trigger revalidation events with specific challenge modes:

Challenge Mode	Event Triggered	Purpose	User Action Required

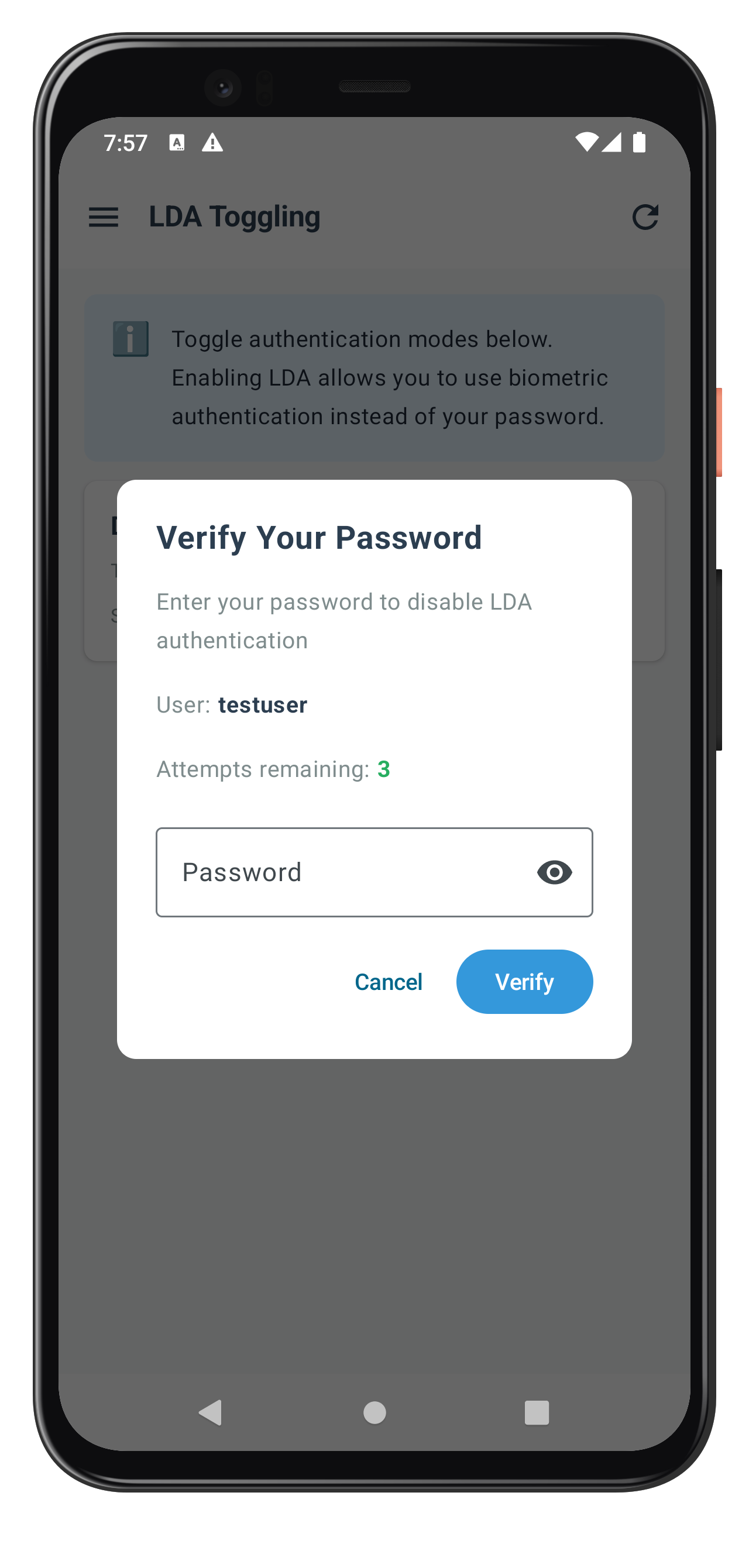

0 or 5 or 15	`onGetPassword`	Verify existing password before toggling	User enters current password

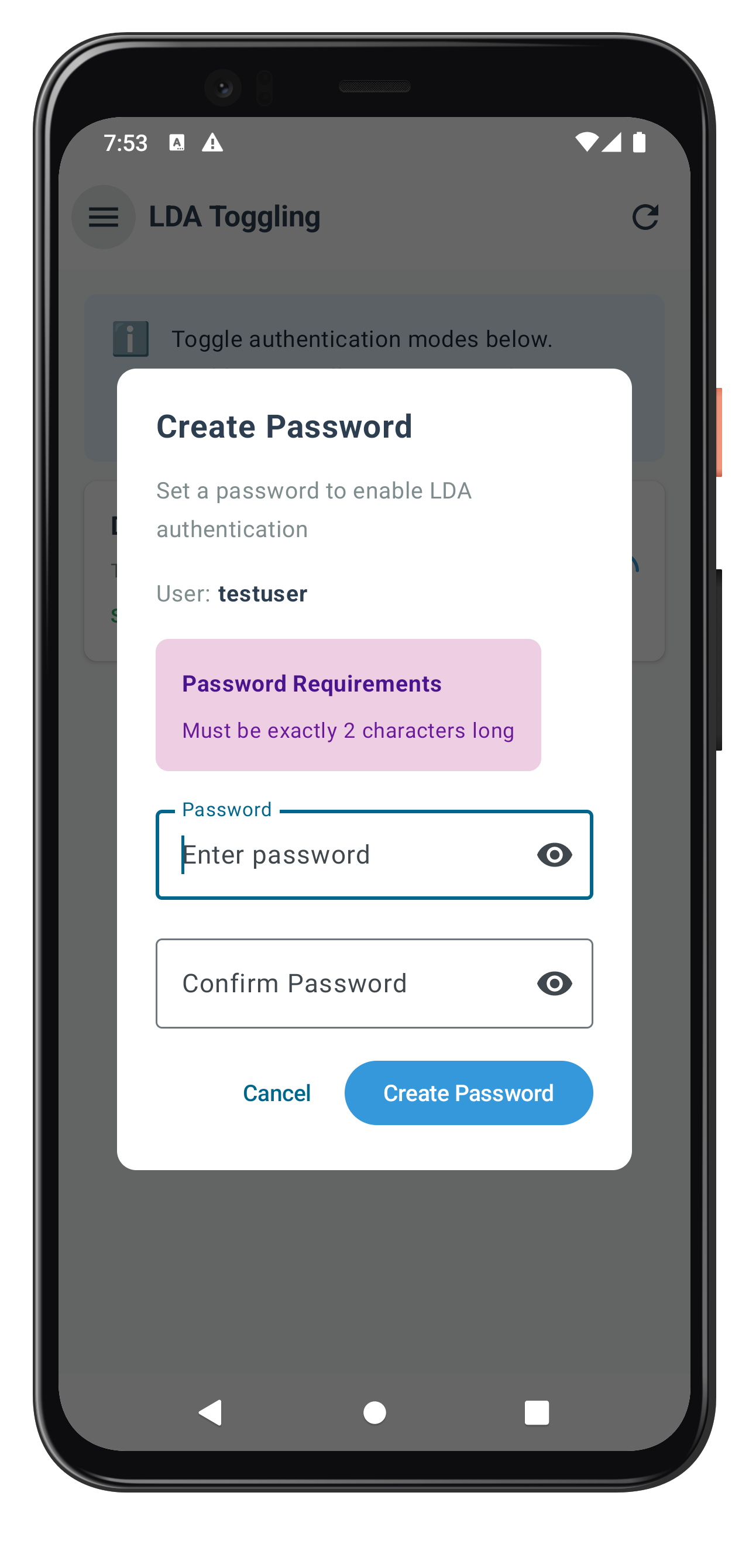

14	`onGetPassword`	Set new password when disabling LDA	User creates new password

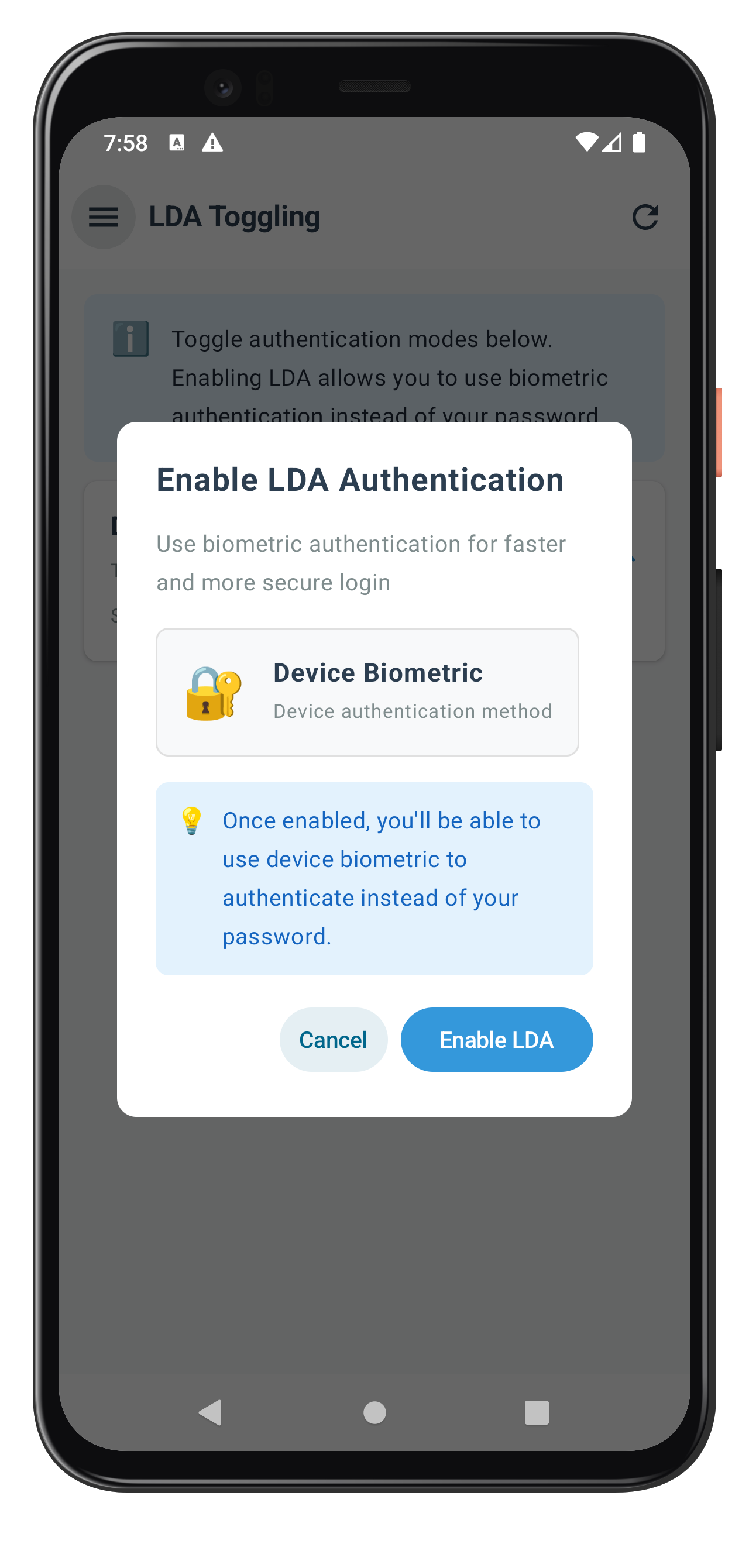

16	`onGetUserConsentForLDA`	Get consent for LDA enrollment	User approves or denies the consent to setup LDA

Response Structure Examples

getDeviceAuthenticationDetails Response:

// Kotlin data structure
RDNAStatus<Array<RDNADeviceAuthenticationDetails>> {
    result = arrayOf(
        RDNADeviceAuthenticationDetails(
            authenticationType = RDNA.RDNALDACapabilities.RDNA_LDA_SSKB_PASSWORD,
            isEnabled = true
        ),
        RDNADeviceAuthenticationDetails(
            authenticationType = RDNA.RDNALDACapabilities.RDNA_DEVICE_LDA,
            isEnabled = false
        )
    ),
    errorObj = RDNAError(
        longErrorCode = 0,
        shortErrorCode = 0,
        errorString = "Success"
    )
}

onDeviceAuthManagementStatus Response:

// Event data structure
DeviceAuthManagementStatusEventData(
    userID = "john.doe@example.com",
    isEnabled = true,
    ldaCapabilities = RDNA.RDNALDACapabilities.RDNA_LDA_SSKB_PASSWORD,
    status = RDNARequestStatus(
        statusCode = 100,
        statusMessage = "Success"
    ),
    error = RDNAError(
        longErrorCode = 0,
        shortErrorCode = 0,
        errorString = "Success"
    )
)

Let's implement the Kotlin data classes for LDA toggling data structures.

Add LDA Authentication Event Data

Add these data class definitions to your existing RDNAModels.kt file:

// app/src/main/java/com/yourapp/uniken/models/RDNAModels.kt (additions)

/**
 * Device Auth Management Status Event Data
 * Event triggered after manageDeviceAuthenticationModes call (async event)
 */
data class DeviceAuthManagementStatusEventData(
    val userID: String,
    val isEnabled: Boolean,                          // true = enabled (OpMode 1), false = disabled (OpMode 0)
    val ldaCapabilities: RDNA.RDNALDACapabilities?,  // Authentication type that was toggled
    val status: RDNA.RDNARequestStatus?,             // Request status (statusCode 100 = success)
    val error: RDNA.RDNAError?                       // Error structure (longErrorCode = 0 indicates success)
)

Data Model Architecture

These data models follow the established REL-ID SDK pattern:

Model Category	Purpose	Usage Pattern
Event Data Classes	Structure event data from callbacks	Used in SharedFlow emissions and ViewModel state
SDK Types	Direct use of SDK enum and data types	Used as properties within event data classes

Now let's implement the LDA toggling APIs in your service layer following established REL-ID SDK patterns.

Add getDeviceAuthenticationDetails Method

Add this method to your RDNAService.kt:

// app/src/main/java/com/yourapp/uniken/services/RDNAService.kt (addition)

/**
 * Gets device authentication details
 *
 * This method retrieves the current authentication mode details and available authentication types.
 * The SDK returns the data directly in the sync response.
 *
 * @see https://developer.uniken.com/docs/android/getdeviceauthenticationdetails
 *
 * Response Validation Logic:
 * 1. Check errorObj.longErrorCode: 0 = success, > 0 = error
 * 2. Data is returned in the sync response
 * 3. No async event is triggered for this API
 *
 * @returns RDNAStatus<Array<RDNADeviceAuthenticationDetails>> that contains authentication details
 */
fun getDeviceAuthenticationDetails(): RDNAStatus<*> {
    Log.d(TAG, "getDeviceAuthenticationDetails() called")

    val status = rdna.deviceAuthenticationDetails

    if (status?.errorObj?.longErrorCode != 0) {
        Log.e(TAG, "getDeviceAuthenticationDetails error: ${status?.errorObj?.errorString}")
    } else {
        Log.d(TAG, "getDeviceAuthenticationDetails success")
    }

    return status
}

Add manageDeviceAuthenticationModes Method

Add this method after getDeviceAuthenticationDetails:

// app/src/main/java/com/yourapp/uniken/services/RDNAService.kt (continued addition)

/**
 * Manages device authentication modes (enables or disables LDA types)
 *
 * This method initiates the process of switching authentication modes.
 * The SDK may return data directly in the sync response or trigger async events.
 * The flow may also trigger getPassword or getUserConsentForLDA events based on the scenario.
 *
 * @see https://developer.uniken.com/docs/android/managedeviceauthenticationmodes
 *
 * Response Validation Logic:
 * 1. Check error.longErrorCode: 0 = success, > 0 = error
 * 2. Data may be returned in sync response or via onDeviceAuthManagementStatus event
 * 3. May trigger getPassword event for password verification (challenge modes: 0, 5, 14, 15)
 * 4. May trigger getUserConsentForLDA event for user consent (challenge mode: 16)
 * 5. Async events will be handled by event listeners
 *
 * @param isEnabled true to enable, false to disable the authentication type
 * @param ldaCapability The LDA type to be managed (enum value)
 * @returns RDNAError that indicates sync response status
 */
fun manageDeviceAuthenticationModes(isEnabled: Boolean, ldaCapability: RDNALDACapabilities): RDNAError {
    Log.d(TAG, "manageDeviceAuthenticationModes() called - isEnabled: $isEnabled, ldaCapability: ${ldaCapability.intValue}")

    val error = rdna.manageDeviceAuthenticationModes(isEnabled, ldaCapability)

    if (error.longErrorCode != 0) {
        Log.e(TAG, "manageDeviceAuthenticationModes sync error: ${error.errorString}")
    } else {
        Log.d(TAG, "manageDeviceAuthenticationModes sync success, may trigger challenge events or direct status update")
    }

    return error
}

Service Implementation Pattern

Both methods follow the established REL-ID SDK service pattern:

Pattern Element	Implementation Detail
Direct SDK Call	Calls SDK method directly without coroutine wrapping
Sync Response	Returns data immediately via SDK property or method call
Error Validation	Checks `longErrorCode == 0` for success
Logging Strategy	Comprehensive logging for debugging
Event Triggering	Async events handled separately via RDNACallbackManager

Now let's enhance your callback manager to handle the onDeviceAuthManagementStatus async event.

Add Event Flow Declaration

Add the event flow in RDNACallbackManager.kt:

// app/src/main/java/com/yourapp/uniken/services/RDNACallbackManager.kt (additions)

// Add to event flow declarations
private val _deviceAuthManagementStatusEvent = MutableSharedFlow<DeviceAuthManagementStatusEventData>()
val deviceAuthManagementStatusEvent: SharedFlow<DeviceAuthManagementStatusEventData> = _deviceAuthManagementStatusEvent.asSharedFlow()

Implement Callback Method

Add the callback method implementation:

// app/src/main/java/com/yourapp/uniken/services/RDNACallbackManager.kt (continued additions)

/**
 * Handles device auth management status callback
 * @param userId User ID
 * @param enabled true = enabled (OpMode 1), false = disabled (OpMode 0)
 * @param capabilities The LDA type that was toggled
 * @param status Request status (statusCode 100 = success)
 * @param error Error structure (longErrorCode = 0 indicates success)
 */
override fun onDeviceAuthManagementStatus(
    userId: String?,
    enabled: Boolean,
    capabilities: RDNA.RDNALDACapabilities?,
    status: RDNA.RDNARequestStatus?,
    error: RDNA.RDNAError?
) {
    Log.d(TAG, "onDeviceAuthManagementStatus callback received - userId: $userId, enabled: $enabled, " +
            "ldaType: ${capabilities?.intValue}, statusCode: ${status?.statusCode}, " +
            "errorCode: ${error?.longErrorCode}")

    scope.launch {
        _deviceAuthManagementStatusEvent.emit(
            DeviceAuthManagementStatusEventData(
                userID = userId ?: "",
                isEnabled = enabled,
                ldaCapabilities = capabilities,
                status = status,
                error = error
            )
        )
    }
}

Event Flow Architecture

The event management follows this pattern:

Native SDK → RDNACallbacks.onDeviceAuthManagementStatus →
SharedFlow Emission → ViewModel Collection → UI Update

Now let's create the ViewModel for managing LDA toggling state and business logic.

Create UI State Model

Define the UI state data class:

// app/src/main/java/com/yourapp/tutorial/viewmodels/LDATogglingViewModel.kt (new file)

/**
 * Authentication Type Name Mapping
 * Maps SDK enum int values to human-readable names
 */
val AUTH_TYPE_NAMES = mapOf(
    0 to "None",
    1 to "Biometric Authentication",  // RDNA_LDA_FINGERPRINT
    2 to "Face ID",                    // RDNA_LDA_FACE
    3 to "Pattern Authentication",     // RDNA_LDA_PATTERN
    4 to "Biometric Authentication",  // RDNA_LDA_SSKB_PASSWORD
    9 to "Biometric Authentication"   // RDNA_DEVICE_LDA
)

data class LDATogglingUiState(
    val isLoading: Boolean = true,
    val authCapabilities: List<AuthCapabilityItem> = emptyList(),
    val error: String? = null,
    val processingAuthType: Int? = null,
    // Dialog state for authentication challenges
    val showAuthDialog: Boolean = false,
    val dialogChallengeMode: Int? = null,
    val dialogUserID: String = "",
    val dialogAttemptsLeft: Int = 3,
    val dialogChallengeInfo: List<*>? = null,
    val dialogPasswordPolicy: String? = null,
    val dialogLdaAuthType: Int? = null,
    val dialogError: String? = null,
    val dialogErrorTimestamp: Long = 0L,
    // Alert dialog state
    val alertDialog: AlertDialogState? = null
)

data class AuthCapabilityItem(
    val authenticationType: Int,
    val authTypeName: String,
    val isConfigured: Boolean,
    val isProcessing: Boolean = false
)

data class AlertDialogState(
    val title: String,
    val message: String
)

Initialize ViewModel with Event Handlers

Set up the ViewModel class with event subscriptions:

// app/src/main/java/com/yourapp/tutorial/viewmodels/LDATogglingViewModel.kt (continued)

import androidx.lifecycle.ViewModel
import androidx.lifecycle.viewModelScope
import kotlinx.coroutines.flow.*
import kotlinx.coroutines.launch

class LDATogglingViewModel(
    private val rdnaService: RDNAService,
    private val callbackManager: RDNACallbackManager
) : ViewModel() {

    private val _uiState = MutableStateFlow(LDATogglingUiState())
    val uiState: StateFlow<LDATogglingUiState> = _uiState.asStateFlow()

    companion object {
        private const val TAG = "LDATogglingViewModel"
    }

    init {
        setupEventHandlers()
        loadDeviceAuthDetails()
    }

    private fun setupEventHandlers() {
        Log.d(TAG, "Setting up event handlers for LDA toggling")

        // Handle deviceAuthManagementStatus event
        viewModelScope.launch {
            callbackManager.deviceAuthManagementStatusEvent.collect { data ->
                Log.d(TAG, "deviceAuthManagementStatus received - isEnabled: ${data.isEnabled}")

                // Hide dialog
                _uiState.update { it.copy(showAuthDialog = false) }

                // Check error FIRST, then status
                if (data.error?.longErrorCode != 0) {
                    val errorMessage = data.error?.errorString ?: "Operation failed"
                    _uiState.update {
                        it.copy(
                            alertDialog = AlertDialogState(
                                title = "Error",
                                message = errorMessage
                            ),
                            processingAuthType = null
                        )
                    }
                } else if (data.status?.statusCode == 100) {
                    // Success case
                    val authTypeName = AUTH_TYPE_NAMES[data.ldaCapabilities?.intValue] ?: "Authentication"
                    val action = if (data.isEnabled) "enabled" else "disabled"

                    _uiState.update {
                        it.copy(
                            alertDialog = AlertDialogState(
                                title = "Success",
                                message = "$authTypeName has been $action successfully"
                            )
                        )
                    }

                    // Refresh device auth details
                    loadDeviceAuthDetails()
                }
            }
        }

        // Handle getPassword event (challengeModes 5, 14, 15)
        viewModelScope.launch {
            callbackManager.getPasswordEvent.collect { data ->
                val challengeMode = data.mode?.intValue ?: 0

                if (challengeMode in listOf(5, 14, 15)) {
                    _uiState.update {
                        it.copy(
                            showAuthDialog = true,
                            dialogChallengeMode = challengeMode,
                            dialogUserID = data.userId ?: "",
                            dialogAttemptsLeft = data.attemptsLeft
                        )
                    }
                }
            }
        }

        // Handle getUserConsentForLDA event (challengeMode 16)
        viewModelScope.launch {
            callbackManager.getUserConsentForLDAEvent.collect { data ->
                val challengeMode = data.mode?.intValue ?: 16

                if (challengeMode == 16) {
                    _uiState.update {
                        it.copy(
                            showAuthDialog = true,
                            dialogChallengeMode = challengeMode,
                            dialogUserID = data.userId ?: "",
                            dialogLdaAuthType = data.authenticationType?.intValue
                        )
                    }
                }
            }
        }
    }
}

Load Device Auth Details

Implement the method to load authentication capabilities:

// app/src/main/java/com/yourapp/tutorial/viewmodels/LDATogglingViewModel.kt (continued)

fun loadDeviceAuthDetails() {
    _uiState.update { it.copy(isLoading = true, error = null) }

    viewModelScope.launch {
        val status = rdnaService.getDeviceAuthenticationDetails()

        if (status?.errorObj?.longErrorCode != 0) {
            // Error
            val errorMessage = status?.errorObj?.errorString ?: "Failed to load authentication details"
            _uiState.update {
                it.copy(
                    isLoading = false,
                    error = errorMessage,
                    processingAuthType = null
                )
            }
        } else {
            // Success - Parse device authentication details
            val capabilities = mutableListOf<AuthCapabilityItem>()

            if (status?.result != null && status.result is Array<*>) {
                val detailsArray = status.result as Array<*>

                for (detail in detailsArray) {
                    if (detail is RDNA.RDNADeviceAuthenticationDetails) {
                        val authType = detail.authenticationType?.intValue ?: 0
                        val isEnabled = detail.isEnabled
                        val authTypeName = AUTH_TYPE_NAMES[authType] ?: "Unknown ($authType)"

                        capabilities.add(
                            AuthCapabilityItem(
                                authenticationType = authType,
                                authTypeName = authTypeName,
                                isConfigured = isEnabled,
                                isProcessing = false
                            )
                        )
                    }
                }
            }

            _uiState.update {
                it.copy(
                    isLoading = false,
                    authCapabilities = capabilities,
                    processingAuthType = null
                )
            }
        }
    }
}

Toggle Auth Mode

Implement the toggle handler:

// app/src/main/java/com/yourapp/tutorial/viewmodels/LDATogglingViewModel.kt (continued)

fun toggleAuthMode(authType: Int, desiredState: Boolean) {
    // Prevent multiple simultaneous operations
    if (_uiState.value.processingAuthType != null) {
        Log.d(TAG, "Another operation is in progress, ignoring toggle")
        return
    }

    _uiState.update { it.copy(processingAuthType = authType) }

    viewModelScope.launch {
        val isEnabled = desiredState
        val ldaCapability = RDNA.RDNALDACapabilities.values().find { it.intValue == authType }

        if (ldaCapability == null) {
            Log.e(TAG, "Invalid authentication type: $authType")
            _uiState.update {
                it.copy(
                    error = "Invalid authentication type",
                    processingAuthType = null
                )
            }
            return@launch
        }

        Log.d(TAG, "Calling manageDeviceAuthenticationModes - isEnabled: $isEnabled, ldaCapability: ${ldaCapability.intValue}")
        val error = rdnaService.manageDeviceAuthenticationModes(isEnabled, ldaCapability)

        if (error.longErrorCode != 0) {
            // Sync error
            Log.e(TAG, "manageDeviceAuthenticationModes sync error: ${error.errorString}")
            _uiState.update {
                it.copy(
                    error = error.errorString,
                    processingAuthType = null
                )
            }
        }
        // Success - async events will follow (or manual trigger from service)
    }
}

fun dismissAlert() {
    _uiState.update { it.copy(alertDialog = null) }
}

fun dismissAuthDialog() {
    _uiState.update { it.copy(showAuthDialog = false) }
}

ViewModel Pattern Summary

The ViewModel architecture follows these patterns:

Pattern Element	Implementation Detail
StateFlow	Single source of truth for UI state
Event Collection	Coroutines collect SharedFlow events from callback manager
Immutable Updates	State updated via `_uiState.update {}` for atomic changes
Loading States	Track loading, error, and processing states separately
Dialog Management	Challenge dialogs managed within ViewModel state

Now let's create the main LDA Toggling screen with Jetpack Compose.

Create Screen Composable

Define the main screen component:

// app/src/main/java/com/yourapp/tutorial/screens/ldatoggling/LDATogglingScreen.kt (new file)

import androidx.compose.foundation.layout.*
import androidx.compose.foundation.lazy.LazyColumn
import androidx.compose.foundation.lazy.items
import androidx.compose.foundation.shape.RoundedCornerShape
import androidx.compose.material3.*
import androidx.compose.runtime.*
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.res.colorResource
import androidx.compose.ui.text.font.FontWeight
import androidx.compose.ui.unit.dp
import androidx.compose.ui.unit.sp
import androidx.lifecycle.compose.collectAsStateWithLifecycle

@Composable
fun LDATogglingScreen(
    viewModel: LDATogglingViewModel,
    onMenuClick: () -> Unit
) {
    val uiState by viewModel.uiState.collectAsStateWithLifecycle()

    Scaffold(
        containerColor = PageBackground,
        topBar = {
            LDATogglingHeader(
                onMenuClick = onMenuClick,
                onRefreshClick = { viewModel.loadDeviceAuthDetails() }
            )
        }
    ) { padding ->
        Box(modifier = Modifier.fillMaxSize().padding(padding)) {
            when {
                uiState.isLoading -> LoadingState()
                uiState.error != null -> ErrorState(
                    error = uiState.error!!,
                    onRetry = { viewModel.loadDeviceAuthDetails() }
                )
                uiState.authCapabilities.isEmpty() -> EmptyState(
                    onRefresh = { viewModel.loadDeviceAuthDetails() }
                )
                else -> AuthCapabilitiesList(
                    capabilities = uiState.authCapabilities,
                    processingAuthType = uiState.processingAuthType,
                    onToggle = { authType, isEnabled ->
                        viewModel.toggleAuthMode(authType, isEnabled)
                    }
                )
            }
        }
    }

    // Auth Dialog
    if (uiState.showAuthDialog && uiState.dialogChallengeMode != null) {
        LDAToggleAuthDialog(
            challengeMode = uiState.dialogChallengeMode!!,
            userID = uiState.dialogUserID,
            attemptsLeft = uiState.dialogAttemptsLeft,
            onPasswordSubmit = { password -> viewModel.submitPassword(password) },
            onPasswordCreateSubmit = { password -> viewModel.submitPasswordCreate(password) },
            onConsentSubmit = { approved -> viewModel.submitConsent(approved) },
            onDismiss = { viewModel.dismissAuthDialog() }
        )
    }

    // Alert Dialog
    uiState.alertDialog?.let { dialog ->
        AlertDialog(
            onDismissRequest = { viewModel.dismissAlert() },
            title = { Text(text = dialog.title) },
            text = { Text(text = dialog.message) },
            confirmButton = {
                TextButton(onClick = { viewModel.dismissAlert() }) {
                    Text("OK")
                }
            }
        )
    }
}

Create Header Component

Implement the header with menu and refresh buttons:

// app/src/main/java/com/yourapp/tutorial/screens/ldatoggling/LDATogglingScreen.kt (continued)

@Composable
private fun LDATogglingHeader(
    onMenuClick: () -> Unit,
    onRefreshClick: () -> Unit
) {
    Surface(
        color = Color.White,
        shadowElevation = 2.dp
    ) {
        Row(
            modifier = Modifier
                .fillMaxWidth()
                .padding(horizontal = 16.dp, vertical = 12.dp),
            horizontalArrangement = Arrangement.SpaceBetween,
            verticalAlignment = Alignment.CenterVertically
        ) {
            // Menu button
            IconButton(onClick = onMenuClick) {
                Text(
                    text = "☰",
                    fontSize = 20.sp,
                    fontWeight = FontWeight.Bold
                )
            }

            // Title
            Text(
                text = "LDA Toggling",
                fontSize = 18.sp,
                fontWeight = FontWeight.Bold,
                modifier = Modifier.weight(1f).padding(start = 16.dp)
            )

            // Refresh button
            IconButton(onClick = onRefreshClick) {
                Text(text = "🔄", fontSize = 18.sp)
            }
        }
    }
}

Create List Component

Implement the list of authentication capabilities:

// app/src/main/java/com/yourapp/tutorial/screens/ldatoggling/LDATogglingScreen.kt (continued)

@Composable
private fun AuthCapabilitiesList(
    capabilities: List<AuthCapabilityItem>,
    processingAuthType: Int?,
    onToggle: (Int, Boolean) -> Unit
) {
    LazyColumn(
        modifier = Modifier.fillMaxSize(),
        contentPadding = PaddingValues(16.dp),
        verticalArrangement = Arrangement.spacedBy(12.dp)
    ) {
        items(capabilities) { capability ->
            AuthCapabilityCard(
                capability = capability,
                isProcessing = processingAuthType == capability.authenticationType,
                onToggle = { isEnabled -> onToggle(capability.authenticationType, isEnabled) }
            )
        }
    }
}

@Composable
private fun AuthCapabilityCard(
    capability: AuthCapabilityItem,
    isProcessing: Boolean,
    onToggle: (Boolean) -> Unit
) {
    Card(
        modifier = Modifier.fillMaxWidth(),
        colors = CardDefaults.cardColors(containerColor = CardBackground),
        elevation = CardDefaults.cardElevation(defaultElevation = 2.dp),
        shape = RoundedCornerShape(8.dp)
    ) {
        Row(
            modifier = Modifier.fillMaxWidth().padding(16.dp),
            horizontalArrangement = Arrangement.SpaceBetween,
            verticalAlignment = Alignment.CenterVertically
        ) {
            // Auth type info
            Column(modifier = Modifier.weight(1f)) {
                Text(
                    text = capability.authTypeName,
                    fontSize = 16.sp,
                    fontWeight = FontWeight.Bold,
                    color = colorResource(R.color.lda_dark_text)
                )
                Text(
                    text = "Type ID: ${capability.authenticationType}",
                    fontSize = 12.sp,
                    color = colorResource(R.color.lda_medium_text)
                )
                Text(
                    text = "Status: ${if (capability.isConfigured) "Enabled" else "Disabled"}",
                    fontSize = 12.sp,
                    color = if (capability.isConfigured)
                        colorResource(R.color.lda_success)
                    else
                        colorResource(R.color.lda_medium_text)
                )
            }

            // Toggle switch or loading indicator
            if (isProcessing) {
                CircularProgressIndicator(
                    modifier = Modifier.size(24.dp),
                    strokeWidth = 2.dp,
                    color = colorResource(R.color.lda_primary)
                )
            } else {
                Switch(
                    checked = capability.isConfigured,
                    onCheckedChange = onToggle,
                    colors = SwitchDefaults.colors(
                        checkedThumbColor = CardBackground,
                        checkedTrackColor = colorResource(R.color.lda_primary)
                    )
                )
            }
        }
    }
}

Create State Components

Implement loading, error, and empty states:

// app/src/main/java/com/yourapp/tutorial/screens/ldatoggling/LDATogglingScreen.kt (continued)

@Composable
private fun LoadingState() {
    Box(
        modifier = Modifier.fillMaxSize(),
        contentAlignment = Alignment.Center
    ) {
        Column(horizontalAlignment = Alignment.CenterHorizontally) {
            CircularProgressIndicator()
            Spacer(modifier = Modifier.height(16.dp))
            Text(
                text = "Loading authentication details...",
                fontSize = 16.sp,
                color = colorResource(R.color.lda_medium_text)
            )
        }
    }
}

@Composable
private fun ErrorState(error: String, onRetry: () -> Unit) {
    Box(
        modifier = Modifier.fillMaxSize().padding(20.dp),
        contentAlignment = Alignment.Center
    ) {
        Column(horizontalAlignment = Alignment.CenterHorizontally) {
            Text(
                text = error,
                fontSize = 16.sp,
                color = colorResource(R.color.lda_error),
                modifier = Modifier.padding(bottom = 16.dp)
            )
            Button(onClick = onRetry) {
                Text("Retry")
            }
        }
    }
}

@Composable
private fun EmptyState(onRefresh: () -> Unit) {
    Box(
        modifier = Modifier.fillMaxSize().padding(40.dp),
        contentAlignment = Alignment.Center
    ) {
        Column(horizontalAlignment = Alignment.CenterHorizontally) {
            Text(text = "🔐", fontSize = 64.sp)
            Spacer(modifier = Modifier.height(16.dp))
            Text(
                text = "No LDA Available",
                fontSize = 20.sp,
                fontWeight = FontWeight.Bold,
                color = colorResource(R.color.lda_dark_text)
            )
            Spacer(modifier = Modifier.height(8.dp))
            Text(
                text = "No Local Device Authentication (LDA) capabilities are available for this device.",
                fontSize = 16.sp,
                color = colorResource(R.color.lda_medium_text)
            )
            Spacer(modifier = Modifier.height(24.dp))
            Button(onClick = onRefresh) {
                Text("🔄 Refresh")
            }
        }
    }
}

The following image showcases the LDA Toggling screen from the sample application:

Android LDA Toggling Screen

Create a unified dialog component to handle all authentication challenges during LDA toggling. This single component manages password verification, password creation, and LDA consent flows.

Dialog Mode Architecture

The auth dialog handles three distinct challenge modes:

Challenge Mode	Dialog Mode	Purpose	UI Elements
5, 15	PASSWORD	Verify existing password	Single password field, attempts counter
14	PASSWORD_CREATE	Create new password	Two password fields, policy display
16	CONSENT	Get LDA consent	Auth type info, consent buttons

Create Dialog Mode Enum

Define the dialog modes:

// app/src/main/java/com/yourapp/tutorial/screens/ldatoggling/LDAToggleAuthDialog.kt (new file)

/**
 * Dialog Mode enum
 * Maps challenge modes to UI presentation modes
 */
enum class LDAToggleDialogMode {
    PASSWORD,         // ChallengeMode 5, 15 - Password verification
    PASSWORD_CREATE,  // ChallengeMode 14 - Password creation
    CONSENT          // ChallengeMode 16 - LDA consent
}

/**
 * Authentication Type Mapping (same as LDATogglingScreen)
 */
private val AUTH_TYPE_NAMES = mapOf(
    0 to "None",
    1 to "Biometric Authentication",
    2 to "Face ID",
    3 to "Pattern Authentication",
    4 to "Biometric Authentication",
    9 to "Device Biometric"
)

Implement Main Dialog Component

Create the unified auth dialog composable:

// app/src/main/java/com/yourapp/tutorial/screens/ldatoggling/LDAToggleAuthDialog.kt (continued)

import androidx.compose.foundation.layout.*
import androidx.compose.foundation.rememberScrollState
import androidx.compose.foundation.shape.RoundedCornerShape
import androidx.compose.foundation.text.KeyboardActions
import androidx.compose.foundation.text.KeyboardOptions
import androidx.compose.foundation.verticalScroll
import androidx.compose.material.icons.Icons
import androidx.compose.material.icons.filled.Visibility
import androidx.compose.material.icons.filled.VisibilityOff
import androidx.compose.material3.*
import androidx.compose.runtime.*
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.focus.FocusRequester
import androidx.compose.ui.focus.focusRequester
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.platform.LocalSoftwareKeyboardController
import androidx.compose.ui.text.font.FontWeight
import androidx.compose.ui.text.input.ImeAction
import androidx.compose.ui.text.input.KeyboardType
import androidx.compose.ui.text.input.PasswordVisualTransformation
import androidx.compose.ui.text.input.VisualTransformation
import androidx.compose.ui.unit.dp
import androidx.compose.ui.unit.sp
import androidx.compose.ui.window.Dialog

@Composable
fun LDAToggleAuthDialog(
    challengeMode: Int,
    userID: String,
    attemptsLeft: Int,
    passwordPolicyJson: String? = null,  // Password policy JSON (for mode 14)
    ldaAuthType: Int? = null,
    onPasswordSubmit: (String) -> Unit,
    onPasswordCreateSubmit: (String) -> Unit,
    onConsentSubmit: (Boolean) -> Unit,
    onDismiss: () -> Unit,
    initialError: String? = null,
    errorTimestamp: Long = 0L  // Timestamp to force re-trigger on same error
) {
    // Determine mode based on challengeMode
    val mode = when (challengeMode) {
        16 -> LDAToggleDialogMode.CONSENT
        14 -> LDAToggleDialogMode.PASSWORD_CREATE
        else -> LDAToggleDialogMode.PASSWORD // 5, 15
    }

    var password by remember { mutableStateOf("") }
    var confirmPassword by remember { mutableStateOf("") }
    var passwordVisible by remember { mutableStateOf(false) }
    var confirmPasswordVisible by remember { mutableStateOf(false) }
    var errorMessage by remember { mutableStateOf(initialError) }
    var isSubmitting by remember { mutableStateOf(false) }

    // Update error message when errorTimestamp changes (for sync API errors)
    LaunchedEffect(errorTimestamp) {
        errorMessage = initialError
        if (initialError != null && errorTimestamp > 0) {
            isSubmitting = false  // Reset loading state on error
        }
    }

    // Password policy message - parse from passwordPolicyJson
    val passwordPolicyMessage = remember(passwordPolicyJson) {
        if (mode == LDAToggleDialogMode.PASSWORD_CREATE) {
            if (!passwordPolicyJson.isNullOrBlank()) {
                PasswordPolicyUtils.parseAndGeneratePolicyMessage(passwordPolicyJson)
            } else {
                "Please create a strong password"
            }
        } else null
    }

    // LDA auth type name
    val ldaAuthTypeName = remember(ldaAuthType) {
        AUTH_TYPE_NAMES[ldaAuthType ?: 1] ?: "Biometric Authentication"
    }

    // Focus management
    val passwordFocusRequester = remember { FocusRequester() }
    val confirmPasswordFocusRequester = remember { FocusRequester() }
    val keyboardController = LocalSoftwareKeyboardController.current

    // Auto-focus password input
    LaunchedEffect(Unit) {
        if (mode != LDAToggleDialogMode.CONSENT) {
            passwordFocusRequester.requestFocus()
        }
    }

    Dialog(onDismissRequest = { if (!isSubmitting) onDismiss() }) {
        Surface(
            shape = RoundedCornerShape(12.dp),
            color = Color.White,
            tonalElevation = 8.dp
        ) {
            Column(
                modifier = Modifier
                    .padding(24.dp)
                    .verticalScroll(rememberScrollState()),
                verticalArrangement = Arrangement.spacedBy(16.dp)
            ) {
                when (mode) {
                    LDAToggleDialogMode.PASSWORD -> PasswordVerificationContent(
                        userID = userID,
                        attemptsLeft = attemptsLeft,
                        password = password,
                        onPasswordChange = { password = it },
                        passwordVisible = passwordVisible,
                        onPasswordVisibilityToggle = { passwordVisible = !passwordVisible },
                        errorMessage = errorMessage,
                        isSubmitting = isSubmitting,
                        passwordFocusRequester = passwordFocusRequester,
                        onSubmit = {
                            if (password.isBlank()) {
                                errorMessage = "Please enter your password"
                            } else {
                                isSubmitting = true
                                errorMessage = null
                                keyboardController?.hide()
                                onPasswordSubmit(password)
                            }
                        },
                        onCancel = onDismiss
                    )

                    LDAToggleDialogMode.PASSWORD_CREATE -> PasswordCreateContent(
                        userID = userID,
                        password = password,
                        onPasswordChange = { password = it },
                        confirmPassword = confirmPassword,
                        onConfirmPasswordChange = { confirmPassword = it },
                        passwordVisible = passwordVisible,
                        onPasswordVisibilityToggle = { passwordVisible = !passwordVisible },
                        confirmPasswordVisible = confirmPasswordVisible,
                        onConfirmPasswordVisibilityToggle = { confirmPasswordVisible = !confirmPasswordVisible },
                        passwordPolicyMessage = passwordPolicyMessage,
                        errorMessage = errorMessage,
                        isSubmitting = isSubmitting,
                        passwordFocusRequester = passwordFocusRequester,
                        confirmPasswordFocusRequester = confirmPasswordFocusRequester,
                        onSubmit = {
                            when {
                                password.isBlank() -> errorMessage = "Please enter a password"
                                confirmPassword.isBlank() -> errorMessage = "Please confirm your password"
                                password != confirmPassword -> errorMessage = "Passwords do not match"
                                else -> {
                                    isSubmitting = true
                                    errorMessage = null
                                    keyboardController?.hide()
                                    onPasswordCreateSubmit(password)
                                }
                            }
                        },
                        onCancel = onDismiss
                    )

                    LDAToggleDialogMode.CONSENT -> ConsentContent(
                        ldaAuthTypeName = ldaAuthTypeName,
                        errorMessage = errorMessage,
                        isSubmitting = isSubmitting,
                        onAccept = {
                            isSubmitting = true
                            errorMessage = null
                            onConsentSubmit(true)
                        },
                        onReject = {
                            isSubmitting = true
                            onConsentSubmit(false)
                        }
                    )
                }
            }
        }
    }
}

Implement Password Verification Content

Create the password verification UI:

// app/src/main/java/com/yourapp/tutorial/screens/ldatoggling/LDAToggleAuthDialog.kt (continued)

@Composable
private fun PasswordVerificationContent(
    userID: String,
    attemptsLeft: Int,
    password: String,
    onPasswordChange: (String) -> Unit,
    passwordVisible: Boolean,
    onPasswordVisibilityToggle: () -> Unit,
    errorMessage: String?,
    isSubmitting: Boolean,
    passwordFocusRequester: FocusRequester,
    onSubmit: () -> Unit,
    onCancel: () -> Unit
) {
    val attemptsColor = when {
        attemptsLeft <= 1 -> colorResource(R.color.lda_error)
        attemptsLeft <= 2 -> colorResource(R.color.lda_warning)
        else -> colorResource(R.color.lda_success)
    }

    // Header
    Text(
        text = "Verify Your Password",
        fontSize = 20.sp,
        fontWeight = FontWeight.Bold,
        color = colorResource(R.color.lda_dark_text)
    )

    Text(
        text = "Enter your password to change authentication method",
        fontSize = 14.sp,
        color = colorResource(R.color.lda_medium_text)
    )

    // User Info
    Row {
        Text("User: ", fontSize = 14.sp, color = colorResource(R.color.lda_medium_text))
        Text(userID, fontSize = 14.sp, fontWeight = FontWeight.Bold, color = colorResource(R.color.lda_dark_text))
    }

    // Attempts Counter
    Row {
        Text("Attempts remaining: ", fontSize = 14.sp, color = colorResource(R.color.lda_medium_text))
        Text("$attemptsLeft", fontSize = 14.sp, fontWeight = FontWeight.Bold, color = attemptsColor)
    }

    // Error Message
    if (errorMessage != null) {
        Surface(
            color = Color(0xFFFEEBEE),
            shape = RoundedCornerShape(8.dp)
        ) {
            Text(
                text = errorMessage,
                fontSize = 14.sp,
                color = colorResource(R.color.lda_error),
                modifier = Modifier.padding(12.dp)
            )
        }
    }

    // Password Input
    OutlinedTextField(
        value = password,
        onValueChange = onPasswordChange,
        label = { Text("Password") },
        placeholder = { Text("Enter your password") },
        visualTransformation = if (passwordVisible) VisualTransformation.None else PasswordVisualTransformation(),
        trailingIcon = {
            IconButton(onClick = onPasswordVisibilityToggle) {
                Icon(
                    imageVector = if (passwordVisible) Icons.Filled.VisibilityOff else Icons.Filled.Visibility,
                    contentDescription = if (passwordVisible) "Hide password" else "Show password"
                )
            }
        },
        enabled = !isSubmitting,
        singleLine = true,
        keyboardOptions = KeyboardOptions(
            keyboardType = KeyboardType.Password,
            imeAction = ImeAction.Done
        ),
        keyboardActions = KeyboardActions(onDone = { onSubmit() }),
        modifier = Modifier
            .fillMaxWidth()
            .focusRequester(passwordFocusRequester)
    )

    // Buttons
    Row(
        modifier = Modifier.fillMaxWidth(),
        horizontalArrangement = Arrangement.End,
        verticalAlignment = Alignment.CenterVertically
    ) {
        TextButton(onClick = onCancel, enabled = !isSubmitting) {
            Text("Cancel")
        }
        Spacer(modifier = Modifier.width(8.dp))
        Button(
            onClick = onSubmit,
            enabled = !isSubmitting,
            colors = ButtonDefaults.buttonColors(
                containerColor = colorResource(R.color.lda_primary)
            )
        ) {
            if (isSubmitting) {
                CircularProgressIndicator(
                    modifier = Modifier.size(16.dp),
                    strokeWidth = 2.dp,
                    color = Color.White
                )
            } else {
                Text("Verify", color = Color.White)
            }
        }
    }
}

Implement Password Creation Content

Create the password creation UI with policy display:

// app/src/main/java/com/yourapp/tutorial/screens/ldatoggling/LDAToggleAuthDialog.kt (continued)

@Composable
private fun PasswordCreateContent(
    userID: String,
    password: String,
    onPasswordChange: (String) -> Unit,
    confirmPassword: String,
    onConfirmPasswordChange: (String) -> Unit,
    passwordVisible: Boolean,
    onPasswordVisibilityToggle: () -> Unit,
    confirmPasswordVisible: Boolean,
    onConfirmPasswordVisibilityToggle: () -> Unit,
    passwordPolicyMessage: String?,
    errorMessage: String?,
    isSubmitting: Boolean,
    passwordFocusRequester: FocusRequester,
    confirmPasswordFocusRequester: FocusRequester,
    onSubmit: () -> Unit,
    onCancel: () -> Unit
) {
    // Header
    Text(
        text = "Create Password",
        fontSize = 20.sp,
        fontWeight = FontWeight.Bold,
        color = colorResource(R.color.lda_dark_text)
    )

    Text(
        text = "Set a password for password-based authentication",
        fontSize = 14.sp,
        color = colorResource(R.color.lda_medium_text)
    )

    // User Info
    Row {
        Text("User: ", fontSize = 14.sp, color = colorResource(R.color.lda_medium_text))
        Text(userID, fontSize = 14.sp, fontWeight = FontWeight.Bold, color = colorResource(R.color.lda_dark_text))
    }

    // Password Policy
    if (passwordPolicyMessage != null) {
        Surface(
            color = Color(0xFFEECEE3),  // Light purple background
            shape = RoundedCornerShape(8.dp)
        ) {
            Column(
                modifier = Modifier.padding(16.dp),
                verticalArrangement = Arrangement.spacedBy(8.dp)
            ) {
                Text(
                    text = "Password Requirements",
                    fontSize = 14.sp,
                    fontWeight = FontWeight.Bold,
                    color = Color(0xFF4A148C)  // Dark purple
                )
                Text(
                    text = passwordPolicyMessage,
                    fontSize = 13.sp,
                    color = Color(0xFF6A1B9A),  // Purple
                    lineHeight = 18.sp
                )
            }
        }
    }

    // Error Message
    if (errorMessage != null) {
        Surface(
            color = Color(0xFFFEEBEE),
            shape = RoundedCornerShape(8.dp)
        ) {
            Text(
                text = errorMessage,
                fontSize = 14.sp,
                color = colorResource(R.color.lda_error),
                modifier = Modifier.padding(12.dp)
            )
        }
    }

    // Password Input
    OutlinedTextField(
        value = password,
        onValueChange = onPasswordChange,
        label = { Text("Password") },
        placeholder = { Text("Enter password") },
        visualTransformation = if (passwordVisible) VisualTransformation.None else PasswordVisualTransformation(),
        trailingIcon = {
            IconButton(onClick = onPasswordVisibilityToggle) {
                Icon(
                    imageVector = if (passwordVisible) Icons.Filled.VisibilityOff else Icons.Filled.Visibility,
                    contentDescription = if (passwordVisible) "Hide password" else "Show password"
                )
            }
        },
        enabled = !isSubmitting,
        singleLine = true,
        keyboardOptions = KeyboardOptions(
            keyboardType = KeyboardType.Password,
            imeAction = ImeAction.Next
        ),
        keyboardActions = KeyboardActions(onNext = { confirmPasswordFocusRequester.requestFocus() }),
        modifier = Modifier
            .fillMaxWidth()
            .focusRequester(passwordFocusRequester)
    )

    // Confirm Password Input
    OutlinedTextField(
        value = confirmPassword,
        onValueChange = onConfirmPasswordChange,
        label = { Text("Confirm Password") },
        placeholder = { Text("Re-enter password") },
        visualTransformation = if (confirmPasswordVisible) VisualTransformation.None else PasswordVisualTransformation(),
        trailingIcon = {
            IconButton(onClick = onConfirmPasswordVisibilityToggle) {
                Icon(
                    imageVector = if (confirmPasswordVisible) Icons.Filled.VisibilityOff else Icons.Filled.Visibility,
                    contentDescription = if (confirmPasswordVisible) "Hide password" else "Show password"
                )
            }
        },
        enabled = !isSubmitting,
        singleLine = true,
        keyboardOptions = KeyboardOptions(
            keyboardType = KeyboardType.Password,
            imeAction = ImeAction.Done
        ),
        keyboardActions = KeyboardActions(onDone = { onSubmit() }),
        modifier = Modifier
            .fillMaxWidth()
            .focusRequester(confirmPasswordFocusRequester)
    )

    // Buttons
    Row(
        modifier = Modifier.fillMaxWidth(),
        horizontalArrangement = Arrangement.End,
        verticalAlignment = Alignment.CenterVertically
    ) {
        TextButton(onClick = onCancel, enabled = !isSubmitting) {
            Text("Cancel")
        }
        Spacer(modifier = Modifier.width(8.dp))
        Button(
            onClick = onSubmit,
            enabled = !isSubmitting,
            colors = ButtonDefaults.buttonColors(
                containerColor = colorResource(R.color.lda_primary)
            )
        ) {
            if (isSubmitting) {
                CircularProgressIndicator(
                    modifier = Modifier.size(16.dp),
                    strokeWidth = 2.dp,
                    color = Color.White
                )
            } else {
                Text("Create Password", color = Color.White)
            }
        }
    }
}

Implement LDA Consent Content

Create the LDA consent UI:

// app/src/main/java/com/yourapp/tutorial/screens/ldatoggling/LDAToggleAuthDialog.kt (continued)

@Composable
private fun ConsentContent(
    ldaAuthTypeName: String,
    errorMessage: String?,
    isSubmitting: Boolean,
    onAccept: () -> Unit,
    onReject: () -> Unit
) {
    // Header
    Text(
        text = "Enable LDA Authentication",
        fontSize = 20.sp,
        fontWeight = FontWeight.Bold,
        color = colorResource(R.color.lda_dark_text)
    )

    Text(
        text = "Use biometric authentication for faster and more secure login",
        fontSize = 14.sp,
        color = colorResource(R.color.lda_medium_text)
    )

    // Auth Type Info
    Surface(
        color = colorResource(R.color.lda_light_gray),
        shape = RoundedCornerShape(8.dp),
        border = androidx.compose.foundation.BorderStroke(1.dp, Color(0xFFE0E0E0))
    ) {
        Row(
            modifier = Modifier.padding(16.dp),
            horizontalArrangement = Arrangement.spacedBy(16.dp),
            verticalAlignment = Alignment.CenterVertically
        ) {
            Text("🔐", fontSize = 32.sp)
            Column {
                Text(
                    text = ldaAuthTypeName,
                    fontSize = 16.sp,
                    fontWeight = FontWeight.Bold,
                    color = colorResource(R.color.lda_dark_text)
                )
                Text(
                    text = "Device authentication method",
                    fontSize = 12.sp,
                    color = colorResource(R.color.lda_medium_text)
                )
            }
        }
    }

    // Error Message
    if (errorMessage != null) {
        Surface(
            color = Color(0xFFFEEBEE),
            shape = RoundedCornerShape(8.dp)
        ) {
            Text(
                text = errorMessage,
                fontSize = 14.sp,
                color = colorResource(R.color.lda_error),
                modifier = Modifier.padding(12.dp)
            )
        }
    }

    // Info Message
    Surface(
        color = colorResource(R.color.lda_info_blue),
        shape = RoundedCornerShape(8.dp)
    ) {
        Row(
            modifier = Modifier.padding(12.dp),
            horizontalArrangement = Arrangement.spacedBy(8.dp)
        ) {
            Text("💡", fontSize = 16.sp)
            Text(
                text = "Once enabled, you'll be able to use ${ldaAuthTypeName.lowercase()} to authenticate instead of your password.",
                fontSize = 14.sp,
                color = Color(0xFF1565C0),
                modifier = Modifier.weight(1f)
            )
        }
    }

    // Buttons
    Row(
        modifier = Modifier.fillMaxWidth(),
        horizontalArrangement = Arrangement.End,
        verticalAlignment = Alignment.CenterVertically
    ) {
        TextButton(onClick = onReject, enabled = !isSubmitting) {
            Text("Cancel")
        }
        Spacer(modifier = Modifier.width(8.dp))
        Button(
            onClick = onAccept,
            enabled = !isSubmitting,
            colors = ButtonDefaults.buttonColors(
                containerColor = colorResource(R.color.lda_primary)
            )
        ) {
            if (isSubmitting) {
                CircularProgressIndicator(
                    modifier = Modifier.size(16.dp),
                    strokeWidth = 2.dp,
                    color = Color.White
                )
            } else {
                Text("Enable LDA", color = Color.White)
            }
        }
    }
}

Dialog Features Summary

The unified auth dialog provides:

Feature	Implementation	Benefit
Single Component	One dialog for all modes	Consistent UX across all challenges
Password Visibility	Toggle icons for secure input	User-friendly password entry
Attempts Counter	Color-coded feedback (red/orange/green)	Visual warning for failed attempts
Password Policy	Parsed and formatted requirements	Clear guidance for password creation
Error Handling	Prominent error display with timestamp	User-aware error feedback
Loading States	Circular progress indicators	Clear processing feedback
Focus Management	Auto-focus and keyboard navigation	Seamless user experience
Keyboard Actions	Submit on Done/Next keys	Efficient keyboard interaction

The following images showcase the three auth dialog modes:

Password Verification Dialog (Mode 5, 15)
Password Verification
(Challenge Mode 5, 15)

Password Creation Dialog (Mode 14)
Password Creation
(Challenge Mode 14)

LDA Consent Dialog (Mode 16)
LDA Consent
(Challenge Mode 16)

During LDA toggling, the SDK may trigger password verification or consent events. Let's ensure your global event provider properly filters these challenge modes.

Update SDKEventProvider for LDA Toggling Modes

Enhance your SDKEventProvider.kt to skip LDA toggling challenge modes:

// app/src/main/java/com/yourapp/uniken/providers/SDKEventProvider.kt (enhancements)

/**
 * Handle password request events
 * Skip challenge modes for LDA toggling (5, 14, 15) - handled by LDATogglingScreen
 */
private suspend fun handleGetPasswordEvents(
    rdnaService: RDNAService,
    callbackManager: RDNACallbackManager,
    navController: NavController
) {
    callbackManager.getPasswordEvent.collect { eventData ->
        val challengeMode = eventData.mode?.intValue ?: 1

        // Skip LDA toggling challenge modes (5, 14, 15) - handled by LDATogglingScreen
        if (challengeMode in listOf(5, 14, 15)) {
            Log.d(TAG, "Skipping challengeMode $challengeMode - handled by LDATogglingScreen")
            return@collect
        }

        when (challengeMode) {
            1 -> {
                // Mode 1 = SET (new password during activation)
                setPasswordViewModel = SetPasswordViewModel(...)
                navController.navigate(Routes.SET_PASSWORD)
            }
            0 -> {
                // Mode 0 = VERIFY (existing password during login)
                verifyPasswordViewModel = VerifyPasswordViewModel(...)
                navController.navigate(Routes.VERIFY_PASSWORD)
            }
            // ... other modes
        }
    }
}

LDA Consent Event Filtering

Handle LDA consent events appropriately:

// app/src/main/java/com/yourapp/uniken/providers/SDKEventProvider.kt (continued)

/**
 * Handle user consent for LDA request events
 * Skip if on Dashboard - LDATogglingScreen handles challengeMode 16 locally
 */
private suspend fun handleGetUserConsentForLDAEvents(
    rdnaService: RDNAService,
    callbackManager: RDNACallbackManager,
    navController: NavController
) {
    callbackManager.getUserConsentForLDAEvent.collect { eventData ->
        val currentRoute = navController.currentDestination?.route

        // Skip if on Dashboard - LDATogglingScreen handles challengeMode 16 locally
        if (currentRoute == Routes.DASHBOARD) {
            Log.d(TAG, "On Dashboard route - skipping global navigation")
            return@collect
        }

        // Navigate to UserLDAConsentScreen for initial activation flow
        userLDAConsentViewModel = UserLDAConsentViewModel(...)
        navController.navigate(Routes.USER_LDA_CONSENT)
    }
}

Challenge Mode Flow Chart

The challenge mode routing follows this decision tree:

manageDeviceAuthenticationModes() Called
│
├─ Enable LDA (isEnabled = true)
│  ├─ challengeMode = 5 → Verify Password → challengeMode = 16 → User Consent → Success
│  └─ challengeMode = 16 → User Consent → Success
│
└─ Disable LDA (isEnabled = false)
   ├─ challengeMode = 15 → Verify Password → challengeMode = 14 → Set Password → Success
   └─ challengeMode = 14 → Set Password → Success

Let's integrate the LDA Toggling screen into your app navigation.

Add Navigation Route

Update your navigation routes and compose setup:

// app/src/main/java/com/yourapp/tutorial/navigation/AppNavigation.kt (additions)

object Routes {
    // ... existing routes
    const val DASHBOARD = "Dashboard"
    const val LDA_TOGGLING = "LDAToggling"
}

@Composable
fun AppNavigation(
    currentActivity: Activity?,
    rdnaService: RDNAService,
    callbackManager: RDNACallbackManager,
    navController: NavHostController = rememberNavController()
): NavHostController {
    NavHost(
        navController = navController,
        startDestination = Routes.TUTORIAL_HOME
    ) {
        // ... existing routes

        composable(Routes.DASHBOARD) {
            val viewModel = SDKEventProvider.getDashboardViewModel()
            if (viewModel != null) {
                DrawerNavigator(
                    dashboardViewModel = viewModel,
                    rdnaService = rdnaService,
                    callbackManager = callbackManager,
                    onLogout = { viewModel.performLogOut { } }
                )
            }
        }
    }

    return navController
}

Add to Drawer Menu

The LDA Toggling screen will be accessible from the drawer menu within the Dashboard:

// app/src/main/java/com/yourapp/tutorial/navigation/DrawerNavigator.kt (reference)

// LDA Toggling is automatically available in the drawer menu as part of the dashboard navigation

Let's test your LDA toggling implementation with comprehensive scenarios.

Test Scenario 1: Enable Biometric Authentication

Setup Requirements:

User logged in with password authentication
Device has biometric authentication enrolled
Navigate to LDA Toggling screen

Test Steps:

Launch app and login with password
Navigate to LDA Toggling from drawer menu
Verify list displays available authentication types
Toggle ON an authentication type (e.g., "Biometric Authentication")
Complete password verification when dialog appears
Approve consent when LDA consent dialog appears
Verify success alert: "Biometric Authentication has been enabled successfully"
Confirm toggle switch shows ON state after refresh

Expected Results:

✅ Authentication types load correctly
✅ Toggle triggers password verification dialog
✅ Consent flow completes successfully
✅ Status updates reflect enabled state
✅ User remains on LDA Toggling screen
✅ User can now login with LDA

Test Scenario 2: Disable Biometric Authentication

Setup Requirements:

User logged in with biometric authentication enabled
Navigate to LDA Toggling screen

Test Steps:

Navigate to LDA Toggling screen
Toggle OFF the enabled authentication type
Create new password when password creation dialog appears
Complete password verification when prompted
Verify success alert: "Biometric Authentication has been disabled successfully"
Confirm toggle switch shows OFF state after refresh

Expected Results:

✅ Toggle triggers password verification dialog
✅ Password creation flow completes successfully
✅ Status updates reflect disabled state
✅ User can now login with new password

Test Scenario 3: No LDA Available

Setup Requirements:

Device without biometric authentication enrolled
Navigate to LDA Toggling screen

Test Steps:

Navigate to LDA Toggling screen
Wait for authentication details to load
Verify empty state displays
Confirm message: "No Local Device Authentication (LDA) capabilities are available"

Expected Results:

✅ Empty state displays correctly
✅ Refresh button is available
✅ No toggle switches are shown

Test Scenario 4: Network Error Handling

Setup Requirements:

Simulate network error or server unavailability

Test Steps:

Navigate to LDA Toggling screen with poor network
Attempt to load authentication details
Verify error message displays
Tap retry button
Confirm error handling works correctly

Expected Results:

✅ Error message displays user-friendly text
✅ Retry button is functional
✅ Loading states work correctly

Debugging with Logcat:

# Filter logs for LDA toggling
adb logcat | grep -E "(LDATogglingViewModel|RDNAService|RDNACallbackManager)"

Prepare your LDA toggling implementation for production deployment with these essential considerations.

Security Validation Checklist

[ ] No Sensitive Data Logging: Verify no authentication tokens or credentials are logged (use RDNA_NO_LOGS)
[ ] Proper State Management: Handle authentication state changes across app lifecycle
[ ] Error Recovery: Graceful handling of SDK errors and network failures
[ ] Challenge Mode Validation: Verify all challenge modes route to correct dialogs

User Experience Optimization

[ ] Clear Status Feedback: Visual indicators for enabled/disabled states
[ ] Loading States: Show progress during all async operations
[ ] Error Messages: User-friendly errors for all failure scenarios
[ ] Accessibility Support: Content descriptions for screen readers
[ ] Performance: Minimize unnecessary API calls and recompositions

Code Quality Standards

[ ] Type Safety: Full Kotlin type coverage with proper data classes
[ ] Code Organization: Logical file structure and component separation
[ ] Documentation: Comprehensive KDoc comments for complex logic
[ ] Testing: Unit tests for ViewModel methods and UI components

Production Deployment Checklist

[ ] Platform Testing: Verify on different Android versions (API 23+)
[ ] Device Variety: Test on devices with different biometric capabilities
[ ] Edge Cases: Handle devices without biometric enrollment
[ ] Version Compatibility: Ensure SDK version compatibility
[ ] Analytics Integration: Track toggling usage and success rates
[ ] ProGuard Rules: Configure R8/ProGuard for release builds

Memory Management

// ViewModels are automatically cleared when screen is destroyed
// StateFlow collection is lifecycle-aware with collectAsStateWithLifecycle()
// No manual cleanup needed

Performance Tips

Use derivedStateOf for computed state
Minimize recomposition with remember and key
Profile with Android Studio Profiler regularly

Congratulations! You've successfully implemented LDA toggling functionality with the REL-ID Android SDK.

🚀 What You've Accomplished

✅ Device Authentication Detection - Automatic retrieval of supported LDA types
✅ Interactive Toggle Interface - User-friendly switches for enabling/disabling authentication
✅ Event-Driven Status Updates - Real-time feedback via onDeviceAuthManagementStatus
✅ Challenge Mode Routing - Proper handling of password verification and consent flows
✅ Production-Ready Code - Comprehensive error handling, loading states, and type safety
✅ Seamless User Experience - Local challenge dialogs and clear status feedback

🔄 LDA Toggling Flow Summary

Your implementation handles two main toggling scenarios:

Password → LDA (i.e. Enable Biometric):

User toggles ON → Password Verification (mode 5) →
User Consent (mode 16) → Status Update → Biometric Enabled

LDA → Password (i.e. Disable Biometric):

User toggles OFF → Password Verification (mode 15) →
Set Password (mode 14) → Status Update → Password Enabled

📚 Additional Resources

REL-ID Android SDK Documentation - Complete SDK reference
getDeviceAuthenticationDetails API - Retrieve authentication capabilities
manageDeviceAuthenticationModes API - Toggle authentication modes
onDeviceAuthManagementStatus Event - Status callback reference
Password to LDA Flow - Enable biometric workflow
LDA to Password Flow - Disable biometric workflow
Jetpack Compose Guide - Official Compose documentation
Kotlin Coroutines Guide - Coroutines and Flow

🎯 Next Steps

Consider enhancing your implementation with:

Custom UI Themes: Match your app's design system with Material 3 theming
Biometric Enrollment Check: Detect and prompt users to enroll biometrics using BiometricManager
Multi-Language Support: Add string resources for internationalization
Advanced Analytics: Track toggling patterns and success rates

🔐 You've mastered authentication mode switching with REL-ID Android SDK!

Your implementation provides users with flexible authentication options while maintaining the highest security standards. Use this foundation to build adaptive authentication experiences that users can customize to their preferences.
