2. Mobile Threat Detection (MTD) Flow Codelab

This codelab demonstrates how to implement Mobile Threat Detection (MTD) flow using the react-native-rdna-client npm plugin. MTD now performs a synchronous check during the RELID SDK initialization to ensure critical threats are detected early. Once the SDK is successfully initialized, MTD continues monitoring asynchronously in the background to detect and respond to any emerging threats during runtime.

What You'll Learn

How to handle MTD threat detection events
Implementing user consent workflows for security threats
Creating threat detection UI components
Managing threat responses and actions
Understanding different threat types and severities

Get the Code from GitHub

The code to get started is stored in a GitHub repository.

You can clone the repository using the following command:

git clone https://github.com/uniken-public/codelab-react-native.git

Navigate to the relid-MTD folder in the repository you cloned earlier

What You'll Need

Completed RELID Initialization codelab
react-native-rdna-client plugin installed and configured
Basic understanding of React Context API
Understanding of React Native modal components
Access to the sample app source code for reference

The sample app provides a complete MTD implementation. Let's examine the key components:

Component	Purpose	Sample App Reference
MTD Context	Global threat state management	`src/uniken/MTDContext/MTDThreatContext.tsx`
Threat Modal	UI for displaying threats	`src/uniken/components/modals/ThreatDetectionModal.tsx`
Event Handling	Extended event manager	`src/uniken/services/rdnaEventManager.ts`
Threat Types	TypeScript interfaces	`src/uniken/types/rdnaEvents.ts`

Permissions

Platform-Specific Permissions

The plugin requires specific permissions for optimal MTD functionality:

iOS Configuration: Refer to the iOS Permissions Documentation for complete Info.plist configuration including:

NSLocationWhenInUseUsageDescription (network threat detection)
NSLocalNetworkUsageDescription (network threat detection)

Android Configuration: Refer to the Android Permissions Documentation for runtime and normal permissions required for MTD features.

MTD Event Types

The RELID SDK triggers two main MTD events during initialization:

Event Type	Description	User Action Required
`onUserConsentThreats`	Non-terminating threats	User can choose to proceed or exit using takeActionOnThreats API
`onTerminateWithThreats`	Critical threats	Application must exit immediately

Define TypeScript interfaces for MTD threat handling:

// src/uniken/types/rdnaEvents.ts
export interface RDNAThreatInfo {
  threatName: string;
  threatMsg: string;
  threatId: number;
  threatCategory: string;        // SYSTEM, APP, NETWORK
  threatSeverity: string;        // LOW, MEDIUM, HIGH
  threatReason: string[] | string;
  networkInfo: {
    bssid: string;
    maliciousAddress: string;
    maliciousMacAddress: string;
    ssid: string;
  };
  appInfo: {
    appName: string;
    appSha256: string;
    packageName: string;
  };
  rememberActionForSession: number;  // 0/1 for API, handled as boolean in implementation
  configuredAction: string;
  shouldProceedWithThreats: number;  // 0/1 for API, handled as boolean in implementation
}

export interface RDNAUserConsentThreatsData {
  threats: RDNAThreatInfo[];
}

export interface RDNATerminateWithThreatsData {
  threats: RDNAThreatInfo[];
}

Threat Categories and Severities

Understanding threat classification helps in implementing:

Category	Examples	Platform
SYSTEM	Usb Debugging, Rooted Device	Android and iOS
NETWORK	Network MITM, Unsecured Access Point	Android and iOS
APP	Malware App, Repacked App	Only Android

Extend your existing event manager to handle MTD events:

// src/uniken/services/rdnaEventManager.ts (additions)
class RdnaEventManager {
  // Add MTD callback properties
  private userConsentThreatsHandler?: RDNAUserConsentThreatsCallback;
  private terminateWithThreatsHandler?: RDNATerminateWithThreatsCallback;

  private registerEventListeners() {
    // ... existing listeners ...

    // Add MTD event listeners
    this.listeners.push(
      this.rdnaEmitter.addListener('onUserConsentThreats', this.onUserConsentThreats.bind(this)),
      this.rdnaEmitter.addListener('onTerminateWithThreats', this.onTerminateWithThreats.bind(this)),
    );
  }

  /**
   * Handles security threat events requiring user consent
   */
  private onUserConsentThreats(response: RDNAJsonResponse) {
    try {
      const threatArray = JSON.parse(response.response);
      const userConsentData: RDNAUserConsentThreatsData = { threats: threatArray };

      if (this.userConsentThreatsHandler) {
        this.userConsentThreatsHandler(userConsentData);
      }
    } catch (error) {
      console.error("Failed to parse user consent threats:", error);
    }
  }

  /**
   * Handles critical security threat events requiring app termination
   */
  private onTerminateWithThreats(response: RDNAJsonResponse) {
    try {
      const threatArray = JSON.parse(response.response);
      const terminateData: RDNATerminateWithThreatsData = { threats: threatArray };

      if (this.terminateWithThreatsHandler) {
        this.terminateWithThreatsHandler(terminateData);
      }
    } catch (error) {
      console.error("Failed to parse terminate threats:", error);
    }
  }

  public setUserConsentThreatsHandler(callback?: RDNAUserConsentThreatsCallback): void {
    this.userConsentThreatsHandler = callback;
  }

  public setTerminateWithThreatsHandler(callback?: RDNATerminateWithThreatsCallback): void {
    this.terminateWithThreatsHandler = callback;
  }
}

Key features of MTD event handling:

JSON parsing: Converts threat data from native SDK responses
Error handling: Graceful error handling when parsing fails
Callback management: Clean API for registering threat handlers
Event delegation: Routes threats to appropriate UI components

The takeActionOnThreats API is only required for handling threats received through the onUserConsentThreats event. This allows the application to take appropriate action based on user consent.

The onTerminateWithThreats event is triggered only when critical threats are detected. In such cases, the SDK automatically terminates internally, and no further actions can be performed through the plugin until the SDK is reinitialized.

Add threat response capability to your RELID service:

// src/uniken/services/rdnaService.ts (addition)
export class RdnaService {
  /**
   * Takes action on detected security threats
   * @param modifiedThreatsJson JSON string containing threat action decisions
   * @returns Promise<RDNASyncResponse> that resolves with sync response structure
   */
  async takeActionOnThreats(modifiedThreatsJson: string): Promise<RDNASyncResponse> {
    return new Promise((resolve, reject) => {
      RdnaClient.takeActionOnThreats(modifiedThreatsJson, response => {
        console.log('RdnaService - Take action on threats response received');

        const result: RDNASyncResponse = response;

        if (result.error && result.error.longErrorCode === 0) {
          console.log('RdnaService - Successfully took action on threats');
          resolve(result);
        } else {
          const errorMessage =
            result.error?.errorString ||
            'Unknown error from takeActionOnThreats';
          console.error(
            'RdnaService - Take action on threats failed:',
            errorMessage,
          );
          reject(result);
        }
      });
    });
  }
}

Important Response Parameters

When responding to threats, two key parameters control the behavior:

Parameter	Purpose	Implementation Values	API Values
`shouldProceedWithThreats`	Whether to continue despite threats	`true` = proceed, `false` = terminate	Converted to boolean in JSON
`rememberActionForSession`	Cache decision for session	`true` = remember, `false` = ask again	Converted to boolean in JSON

Note: While the API documentation may show these as number types (0/1), the actual implementation uses boolean values (true/false) for better code readability.

Create a React Context to manage MTD state across your application:

// src/uniken/MTDContext/MTDThreatContext.tsx
interface MTDThreatState {
  isModalVisible: boolean;
  threats: RDNAThreatInfo[];
  isConsentMode: boolean;
  isProcessing: boolean;
  showThreatModal: (threats: RDNAThreatInfo[], isConsent: boolean) => void;
  hideThreatModal: () => void;
  handleProceed: () => void;
  handleExit: () => void;
}

export const MTDThreatProvider: React.FC<MTDThreatProviderProps> = ({ children }) => {
  const [isModalVisible, setIsModalVisible] = useState(false);
  const [threats, setThreats] = useState<RDNAThreatInfo[]>([]);
  const [isConsentMode, setIsConsentMode] = useState(false);
  const [isProcessing, setIsProcessing] = useState(false);

  useEffect(() => {
    const eventManager = rdnaService.getEventManager();

    eventManager.setUserConsentThreatsHandler((data: RDNAUserConsentThreatsData) => {
      showThreatModal(data.threats, true);
    });

    eventManager.setTerminateWithThreatsHandler((data: RDNATerminateWithThreatsData) => {
      showThreatModal(data.threats, false);
    });

    return () => {
      console.log('MTDThreatProvider cleanup');
    };
  }, []);
};

Threat Response Logic

The context handles user decisions by modifying threat objects:

const handleProceed = () => {
  setIsProcessing(true);

  // Modify all threats to proceed with action
  const modifiedThreats = threats.map(threat => ({
    ...threat,
    shouldProceedWithThreats: true,
    rememberActionForSession: true,
    threatReason: Array.isArray(threat.threatReason)
      ? threat.threatReason.join(',')
      : threat.threatReason
  }));

  const threatsJsonString = JSON.stringify(modifiedThreats);

  rdnaService.takeActionOnThreats(threatsJsonString)
    .then(() => {
      hideThreatModal();
    })
    .catch((error) => {
      setIsProcessing(false);
      Alert.alert('Failed to proceed with threats', error.errorString);
    });
};

const handleExit = () => {
  if (isConsentMode) {
    setIsProcessing(true);

    const modifiedThreats = threats.map(threat => ({
      ...threat,
      shouldProceedWithThreats: false,
      rememberActionForSession: true,
      threatReason: Array.isArray(threat.threatReason)
        ? threat.threatReason.join(',')
        : threat.threatReason
    }));

    const threatsJsonString = JSON.stringify(modifiedThreats);

    rdnaService.takeActionOnThreats(threatsJsonString)
      .then(() => {
        // Application will exit via terminateWithThreats callback
      })
      .catch((error) => {
        setIsProcessing(false);
        Alert.alert('Failed to process threat action', error.errorString);
      });
  } else {
    // Direct exit for terminate threats
    BackHandler.exitApp();
  }
};

Key features of the MTD context:

Global state management: Centralized threat handling across the app
Event integration: Automatic registration with the event manager
User decision handling: Processes user choices for threats
API integration: Calls takeActionOnThreats with proper threat modifications

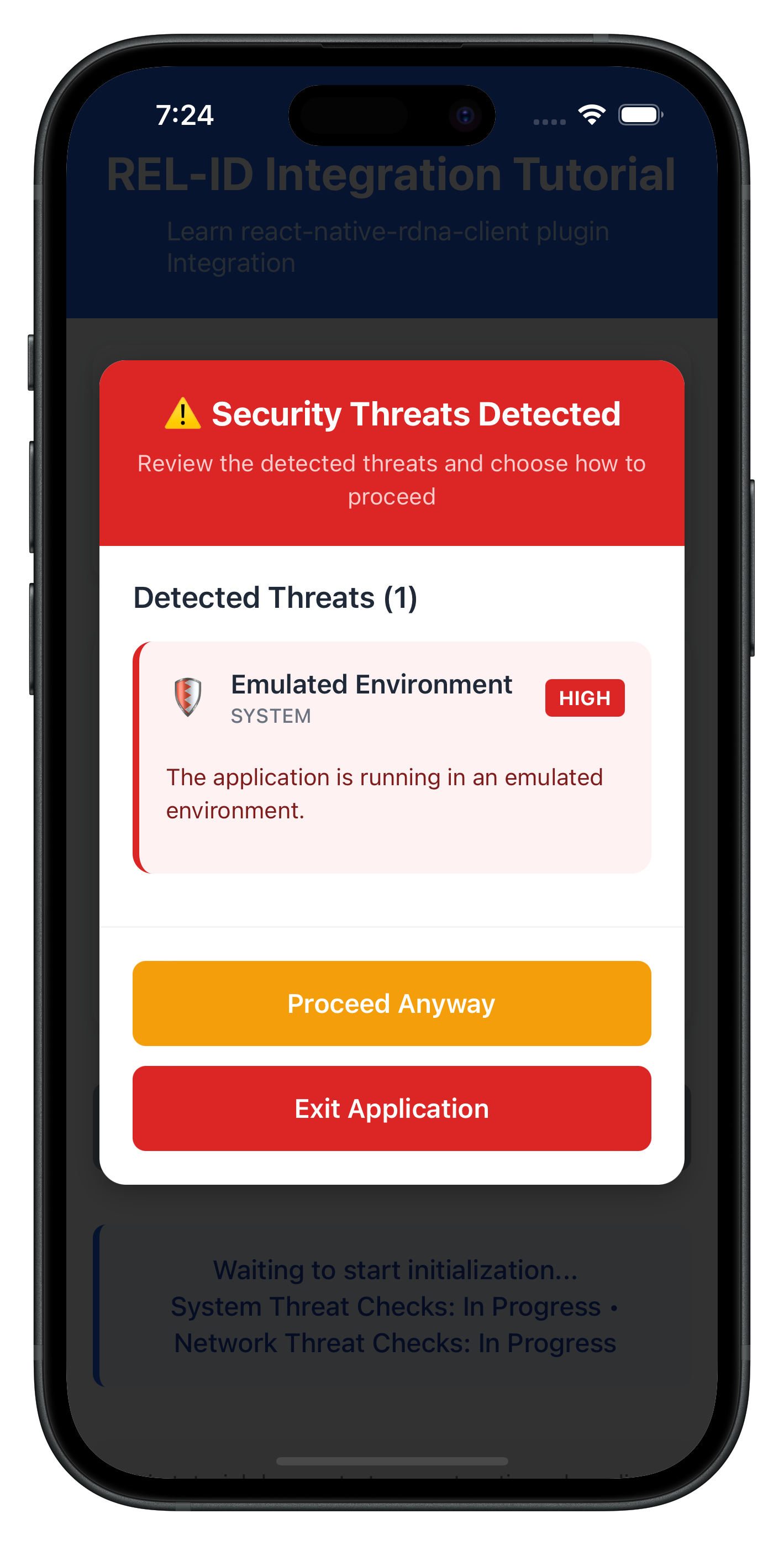

Create a modal component to display threat information to users:

// src/uniken/components/modals/ThreatDetectionModal.tsx
interface ThreatDetectionModalProps {
  visible: boolean;
  threats: RDNAThreatInfo[];
  isConsentMode: boolean;
  isProcessing?: boolean;
  onProceed?: () => void;
  onExit: () => void;
}

const ThreatDetectionModal: React.FC<ThreatDetectionModalProps> = ({
  visible,
  threats,
  isConsentMode,
  isProcessing = false,
  onProceed,
  onExit,
}) => {
  const getThreatSeverityColor = (severity: string): string => {
    switch (severity.toUpperCase()) {
      case 'HIGH': return '#dc2626';
      case 'MEDIUM': return '#f59e0b';
      case 'LOW': return '#10b981';
      default: return '#6b7280';
    }
  };

  const renderThreatItem = (threat: RDNAThreatInfo, index: number) => (
    <View key={threat.threatId} style={styles.threatItem}>
      <Text style={styles.threatName}>{threat.threatName}</Text>
      <Text style={styles.threatMessage}>{threat.threatMsg}</Text>
      <View style={[styles.severityBadge,
        { backgroundColor: getThreatSeverityColor(threat.threatSeverity) }]}>
        <Text style={styles.severityText}>{threat.threatSeverity}</Text>
      </View>
    </View>
  );

  return (
    <Modal visible={visible} transparent={true} animationType="fade">
      <View style={styles.modalOverlay}>
        <View style={styles.modalContainer}>
          <Text style={styles.modalTitle}>
            {isConsentMode ? 'Security Threats Detected' : 'Critical Security Threat'}
          </Text>

          <ScrollView style={styles.threatsContainer}>
            {threats.map((threat, index) => renderThreatItem(threat, index))}
          </ScrollView>

          <View style={styles.buttonContainer}>
            {isConsentMode && onProceed && (
              <TouchableOpacity
                style={styles.proceedButton}
                onPress={onProceed}
                disabled={isProcessing}
              >
                <Text style={styles.buttonText}>
                  {isProcessing ? 'Processing...' : 'Proceed Anyway'}
                </Text>
              </TouchableOpacity>
            )}

            <TouchableOpacity
              style={styles.exitButton}
              onPress={onExit}
              disabled={isProcessing}
            >
              <Text style={styles.buttonText}>Exit Application</Text>
            </TouchableOpacity>
          </View>
        </View>
      </View>
    </Modal>
  );
};

Key features of the threat detection modal:

Threat display: Shows threat name, message, and severity level
Color-coded severity: Visual indication of threat levels (HIGH=red, MEDIUM=orange, LOW=green)
Conditional buttons: Different actions based on threat type (consent vs terminate)
Loading states: Processing indicators during API calls
Modal overlay: Prevents interaction with underlying UI

The following image showcases screen from the sample application:

Mobile Threat Detection Screen

Wrap your application with the MTD context provider:

// App.tsx
import {MTDThreatProvider} from './src/uniken/MTDContext';
import { NavigationContainer } from '@react-navigation/native';
import { navigationRef } from './src/tutorial/navigation/NavigationService';

const AppContent = () => {
  const {
    isModalVisible,
    threats,
    isConsentMode,
    isProcessing,
    handleProceed,
    handleExit,
  } = useMTDThreat();

  return (
    <>
      <NavigationContainer ref={navigationRef}>
        {/* Your existing navigation including SecurityExitScreen */}
      </NavigationContainer>
    </>
  );
};

function App() {
  return (
    <MTDThreatProvider>
      <AppContent />
    </MTDThreatProvider>
  );
}

The context provider approach offers several advantages:

Global state management: MTD state accessible throughout the app
Automatic event handling: Callbacks registered once at app level
Consistent UI: Single modal component handles all threat scenarios
Memory efficiency: Singleton pattern prevents memory leaks
Platform-specific handling: NavigationService enables iOS SecurityExitScreen navigation for HIG-compliant exit guidance

Test Scenarios

User Consent Threats: Test with low-medium severity threats
Terminate Threats: Test with high severity threats requiring app exit
Mixed Threat Types: Test scenarios with multiple threat categories
User Interactions: Test both "Proceed" and "Exit" flows

Common MTD Test Scenarios

Threat Category	Examples	Typical Severity	Expected Response
SYSTEM	Usb Debugging, Rooted Device	LOW-HIGH	User consent or termination
NETWORK	Network MITM, Unsecured Access Point	LOW-MEDIUM	User consent or termination
APP	Malware App, Repacked App	MEDIUM-HIGH	User consent or termination

Debugging MTD Events

Use these debugging techniques to verify MTD functionality:

// Verify callback registration
console.log('MTD callbacks:', {
  userConsent: !!eventManager.onUserConsentThreatsCallback,
  terminate: !!eventManager.onTerminateWithThreatsCallback
});

// Log threat data
console.log('Received threats:', threats.map(t => ({
  name: t.threatName,
  severity: t.threatSeverity,
  category: t.threatCategory
})));

Modal Not Appearing

Cause: MTD callbacks not properly registered Solution: Verify MTDThreatProvider wraps your app and callbacks are set

Cause: Event listeners not attached Solution: Check that rdnaEmitter.addListener calls are successful

Threats Not Processed

Cause: Incorrect JSON format in takeActionOnThreats call Solution: Ensure threat objects are properly serialized

// Correct format
const threatsJsonString = JSON.stringify(modifiedThreats);
console.log('Sending to API:', threatsJsonString);

Cause: Missing required threat properties Solution: Verify all required properties are present in threat objects

App Not Exiting

Cause: BackHandler.exitApp() may not work as expected on all platforms

Solution: Use platform-appropriate exit handling

const handleExit = () => {
  if (isConsentMode) {
    // For consent threats, call takeActionOnThreats first
    // This will trigger terminateWithThreats callback which handles exit
  } else {
    // For terminate threats, exit directly
    BackHandler.exitApp();
  }
};

Best Practice: Test exit behavior on both iOS and Android devices

Important Security Guidelines

Never ignore terminate threats - Always exit the app when required
Log threat details securely - For analysis without exposing sensitive data
Educate users appropriately - Provide clear but not alarming explanations
Keep SDK updated - Regular updates include latest threat detection
Test thoroughly - Verify MTD behavior across different device states

Threat Response Guidelines

Threat Severity	Recommended Action	User Choice
LOW	Usually proceed with warning	User decides
MEDIUM	Proceed with caution	User decides with strong warning
HIGH	Consider termination	Limited or no user choice

Memory and Performance

Clean up modal state properly
Handle background/foreground app states
Implement proper error boundaries
Test on various device configurations
Monitor for memory leaks in threat handling

Congratulations! You've successfully learned how to implement comprehensive MTD functionality with:

✅ Real-time threat detection and handling
✅ User-friendly threat information display
✅ Secure threat response mechanisms
✅ Global state management using React Context
✅ Proper app termination for critical threats

Key Security Benefits

Your MTD implementation now provides:

Proactive threat detection during SDK initialization
User-informed decision making for non-critical threats
Automatic protection against severe security violations
Comprehensive logging for security analysis

Next Steps

Implement additional RELID SDK features
